Midrange Actuator for Small Diameters

Aug. 3, 2017
GF Piping Systems introduces an additional actuator to its line of EA25-250 Electric Actuator Series.

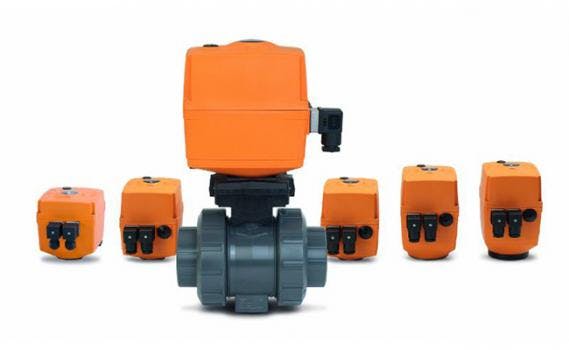

An addition to the Type EA25-250 Electric Actuator Series, the EA15 electric actuator is ideal for smaller diameter, open/close ball valve applications in chemical processing, refrigeration, and water treatment.



Key features included in the standard package are: open/close limit switches, easy-to-read 7-segment error code display, adjustable internal heating element, and chemically resistant polyproplyene housing. An optional fail-safe battery backup is also available.



Designed to operate quarter turn valves, the EA15 actuator delivers a nominal torque of 10 Nm and a peak torque of 20 Nm.  Clearly displayed LED indicators enable fast and easy reading of valve position and actuator status at a glance - whether in low light conditions or from a distance.



The EA15 utilizes an ISO 5211 universal mounting pattern and carries certifications for Vibration Testing under EN 60068-2-6, manufacturing under ISO9001 for Quality, and Environmental Management under ISO14001.

  • Integrated heater
  • Open/Close feedback switches
  • 7-Segment fault display
  • LED reinforced optional position/status indication
  • Glass-filled PP housing
  • 4-wire or 2-wire control capabilities
  • Integrated manual override
