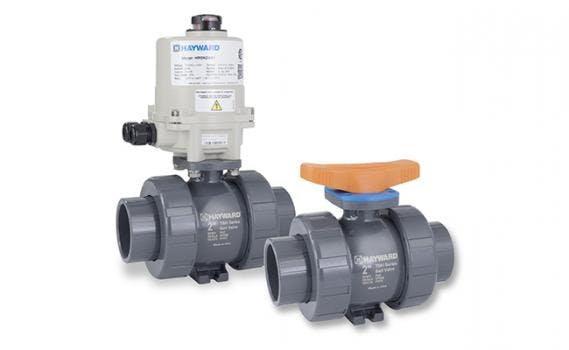

The TBH Series True Union Industrial Ball Valve, a thermoplastic floating ball valve, features a low maintenance design with its new patent pending System2 Sealing Technology. The System2 Sealing Technology utilizes the upstream seat as a backup to the downstream seat while enhancing the sealing of the downstream seat as well, ensuring a longer life cycle and performance. Assisting users in protecting property and life, an integral lock-out feature secures to the body of the valve.
The TBH Series are fully pressure rated for 250 PSI / PN16 at 70°F/23°C non-shock across all sizes and materials. The TBH Series offers IPS or DIN/EN socket and threaded or flanged end connections. Actuator ready design with ISO 5211 mounting pattern on all sizes is standard.
Features:
- Lockout/Tagout mechanism that secures directly to valve body for enhanced safety - standard
- Ergonomic handle for improved grip and comfort
- Integral ISO mounting flange simplifies actuation
- Permanent markings, eliminates labels
- Integral footpad for skid or panel mount
- FPM or EPDM seals - standard
- Double O-Ring stem seals
- Reversible PTFE seats – standard
- Direct replacement for existing Hayward TB Series
- NSF/ANSI 61 and 372 Listed
- Backed by Hayward’s Exclusive 2 Year Warranty
- Made in the USA
