Engineered to withstand molten splashes and mechanical abuse, the Thermo-Trex Soaking Pit Cable is a multi-conductor power cable designed to provide long service life in applications exposed to hot material contact.

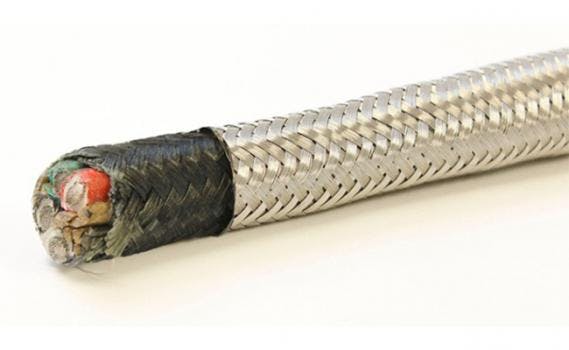

TPC’s robust Thermo-Trex Soaking Pit Cable is constructed using stranded, tinned copper conductors to improve flexibility. Insulation consists of heat and moisture-resistant silicone rubber with fiberglass braiding over each conductor to prevent damage from abrasion and heat while aiding with conductor identification. Non-flammable fiberglass wrap tape improves performance in flexing and overhead applications while also providing an additional layer of moisture and thermal resistance. An inner braid jacket made of aramid fibers resists moisture, flame, heat, and abrasion while the outer jacket of braided stainless steel delivers 95% coverage for the best defense against abrasion and mechanical abuse.
Features:
- Tinned copper conductors
- Silicone rubber with fiberglass insulation
- Non-flammable fiberglass wrap tape
- Inner braid jacket made of aramid K-fibers
- Outer jacket constructed of braided stainless steel
