22 ECP Brushless Mini Motor

Aug. 6, 2021

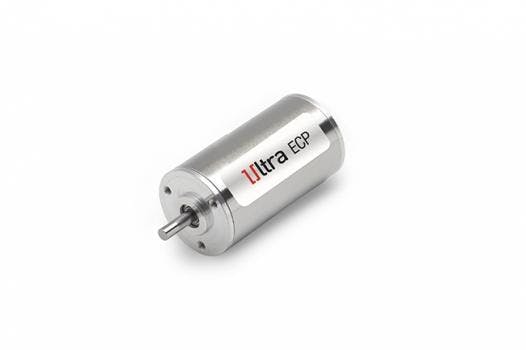

Portescap’s 22ECP miniature brushless DC motor includes an integrated driver to optimize motor performance and simplify installation. The 22 mm diameter motor is just 35 mm in length and delivers 50% more continuous torque than comparable brushless slotless miniature motors, without compromising smoothness of operation or motor lifespan.



The motor is the latest addition to Portescap’s line of high-performance, economic two-pole motors designed to deliver a balance between speed and torque capabilities. Driver integration ensures better motor-driver matching, which simplifies installation and reduces assembly footprint and cost. It also eliminates unnecessary additional wiring between the motor and the drive.



Thanks to its minimal speed drop and low motor heating under load, the 22ECP motor works well with gearboxes. And its low inertia makes it suited to applications requiring fast incremental motion and acceleration such as respiratory and ventilation devices, infusion pumps, miniature industrial pumps, medical hand tools, clinical diagnostics, and valve actuation.



Portescap can customize the 22ECP with gearboxes, encoders, coil variations, and mechanical interface modifications, as needed.

 22ECP35 2A 154.0122ECP35 2A 184.01Motor Diameter (mm)22Ambient Operating Temperature Range (°C)-30 to + 100Ambient Storage Temperature Range (°C)-40 to + 100Axial Static Force w/o Shaft Support, Max (N)34Back EMF Constant (V/1000 rpm)1.531.82Ball Bearings Preload (N)5.5Continuous Current, Max (A)0.90.7Continuous Mechanical Power, Max (@25°C) (W)97.3Continuous Torque, Max (mNm)12.6Electrical Time Constant (ms)0.130.14Housing MaterialStainless SteelHall Sensor Electrical Phasing (electrical °)n/aInductance - Phase to Phase (mH)0.620.89Internal Resistance - Phase to Phase (Ohm)4.656.58Mechanical Time Constant (ms)3Motor Constant (mNm/W½)6.8Motor Regulation (10³/Nms)21.821.7Motor Speed, Max (rpm)10,0008,000No-Load Current, Typical (mA)6330No-Load Speed (rpm)7,7006,600Nominal Voltage (V)12Optimization DirectionCCWRotor Inertia (gcm²)1.38Thermal Resistance (Slotless) (°C/W)3.5/12.5Thermal Time Constant (s)550Torque Constant (mNm/A)14.617.4Weight (g)64Winding Temperature, Max (°C)125Length (mm)35Feedback TypeIntegrated ElectronicsNumber of Poles2 pole
