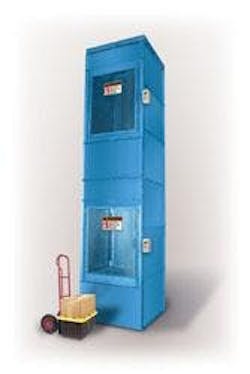

Pflow Industries, Inc. has added the Series B (Box) lift to its industry leading lineup of vertical material lifts and vertical reciprocating conveyors. The Series B lift becomes the seventh product series in the Pflow portfolio, which includes a lift series variation that can be custom engineered to serve virtually any material lifting application.
The Series B lift is designed to efficiently move boxes, cartons, barrels, loose parts and other portable loads to and from mezzanines and basements or between floors. Featuring a 3 ft x 3 ft x 4 ft high load carriage and a mechanical drive mechanism, the Series B easily moves loads up to 500 lbs to heights up to 20 ft at a speed of 40 fpm. The soft start/stop performance motor can easily be adjusted to speeds appropriate for fragile or sensitive loads.
With many built-in safety features to protect both workers and materials the Series B lift is the safest of its kind. Access gates at each level are interlocked with the lift operation and integral safety enclosures provide full height guarding on all sides. The carriage is moved by two separate roller chains; industry-exclusive spring loaded safety pins prevent an uncontrolled decent in the improbable case of a chain break. Unlike most competitor lifts the Series B is ASME 20.1 compliant.
The unit is completely modular with simple bolt-together construction allowing for loading and unloading from any of three sides at either level. The gate arrangement can be easily changed for left- or right-hand opening. The versatile, self-contained unit is compact and easy to install, with a durable, high-quality construction that ensures safe, reliable, long term performance. The load carriage is a full foot taller than many competitive models allowing for the service of a wider variety of loads.
The Series B lift ships pre-assembled and pre-wired with “quick-connect” wiring for easy installation. In most cases installation should take less than six hours.
Lift heights and levels are able to meet application requirements; with custom versions available to move loads between more than two floors and/or to heights greater than 20 ft.
• GENERAL • Pflow Series B Vertical Lift offers simple and convenient transportation of materials between two levels. Principle components include modular steel enclosure, mechanical drive assembly, and lift carriage. • APPLICATION DATA • Series B lifts are available with: Live load lifting capacities of 300 or 500 lbs.; carriage size of 3’ x 3’. Standard travel speed is 40 fpm. • STRUCTURE • Stackable modular formed steel panels provide full height guarding and internal guide for carriage assembly. Gate arrangement can be easily changed for right hand or left hand swing open pattern. • OPERATION • Carriage is lifted and lowered by dual roller chains connected to electric motor-reducer assembly. Motor-reducer assembly is mounted within lift enclosure at floor level with easy access door for maintenance. • ELECTRICAL • Standard power requirements are 230V single-phase or 230V/460V 3-phase. Low voltage controls. NEMA 12 rated momentary contact push button stations are provided for each level and include call/send and E-stop. Quick-connect wiring is provided and ships partially pre-wired to speed installation. • SAFETY FEATURES • Pflow Series B Lift is the safest modular small package lift on the market and is ASME B20.1 Code compliant. Features include exclusive spring loaded dual safety pins that prevent uncontrolled descent in case of chain break; elevator approved electro-mechanical door interlocks; full height safety enclosures; overload protection.
