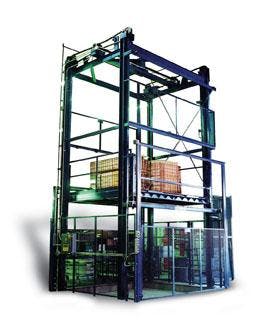

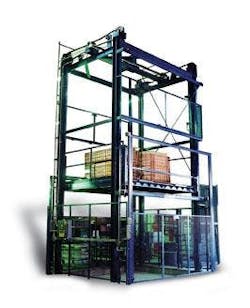

Pflow mechanical vertical lifts offer versatility and dependability for high-speed and multi-level applications and for moving large, heavy loads. Pflow mechanical vertical lifts offer durable, heavy-duty construction and maximum flexibility in carriage size, capacity, and traffic patterns.
Series M Lifts offer high performance and durability with a 2-post mechanical design. It's designed to transport large, heavy loads between two or more levels. Ideal for high-cycle, automated systems or frequent-use applications. It lifts up to 8,000 lb loads with carriage sizes up to 10 x 12 ft with a vertical rise to 200 ft and travel speeds up to 400 ft/min.
Series F Lifts offer maximum capacity and a rugged 4-post design for the heaviest lifting applications. It lifts heavy, bulky, oversized loads up to 50,000 lb and transports multiple pallet loads, large carts, and heavy machinery between two or more levels. It offers maximum flexibility in carriage size, capacity, and traffic patterns. Loading and unloading from all four sides. Unlimited vertical rise. Travel speeds up to 400 ft/min.
Both the Series M and F lifts are engineered to meet your exact application and height requirements. The carriage is lifted and lowered by a heavy roller chain attached to a mechanical lifting mechanism. Heavy-duty construction provides superior strength, reliability, and long-term performance. Built-in, advanced safety features protect workers and materials. Access gates at each level are interlocked with lift operation. Available with a patented DeckLock system that provides additional security at critical upper levels. Meets ANSI/ASME B20.1 code.
