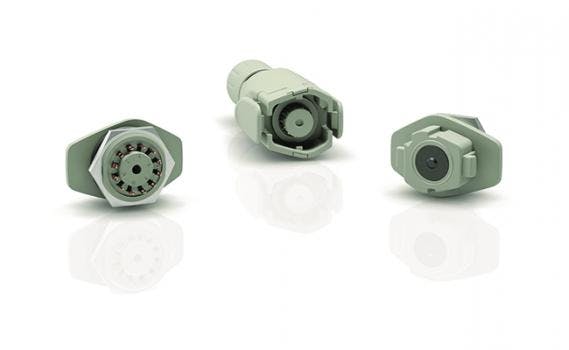

570 ELC Series, Easy Locking Connectors with a unique circular layout feature 12 gold-plated pins for an intuitive locking system with snap hooks and clearly set mating position (set through shape of mating area) to prevent mismating.
The female panel mount connector provides IP54 protection from liquids, water splash, and touching of the contacts. Mechanical resistance is greater than 5,000 mating cycles. The 570 ELC Series is ideal for instrumentation and measurement applications, as well as such as patient monitoring in the medical and home health industry, among many other applications.
- Contacts: 12
- Wire Gauge: 24 AWG
- Operating Temperature: -13 to 185°F (-25 to 85°C)
- Rated Current: 2 A
- Rated Voltage: 150V
- Pollution Degree: 2
- Material Housing: PA66
- >5,000 Mating cycles
