More Power in a Smaller Package

Aug. 17, 2017
Pittman Motors releases a more compact brushless motor without removing any of the power.

Despite their small size (1.3 in./33 mm diameter), these brushless DC motors can achieve peak torque from 12.6 oz-in to 54.3 oz-in and continuous torque from 5 oz-in to 9 oz-in, depending on model. Robust rotor construction allows rotational speeds up to 8000 RPM.



Three Hall sensors are incorporated as standard components to provide rotor position feedback for electronic commutation. Other standard features include 3-phase stator with 6-slot silicon steel laminations; 4-pole rotor integrating high-energy neodymium ring magnets for optimized motor performance; and large ABEC ball bearings with high dynamic load ratings (up to 390 lb.) and shielded to protect against contaminants.

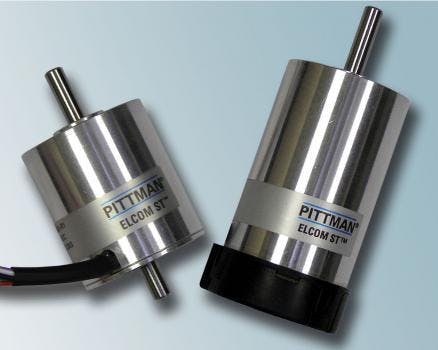

PITTMAN Series 1300 brushless DC motors are available in three lengths (1.5 in., 2 in., and 2.5 in.); housed in precision-machined aluminum to promote lightweight designs; and include integral front-endbell. Optional square flanges can be specified for NEMA 14 mounting.



Motors can further be customized with a wide range of components to meet application demands, including planetary or spur gearboxes and optical encoders, among others.
