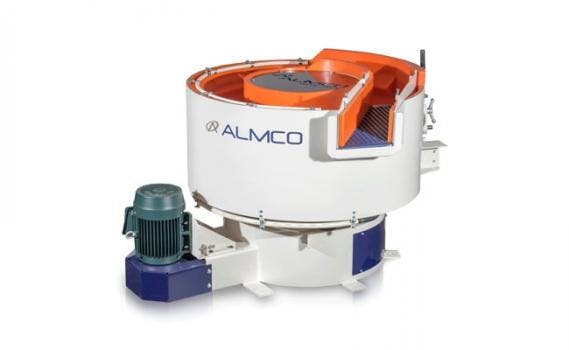

The SBB-24 spiral-bottom round-bowl finishing machine offers a unique full-circle baffle that keeps parts in the media mass constantly for faster, more precise processing and a 24-cubic-foot tub that can accommodate large as well as small parts.
The design features labor-saving, automatic separation of parts from the abrasive media, at pre-determined intervals according to finishing requirements. Its separating screen surface is longer than other round-bowl designs, which permits faster separation of parts and machine unloading.
The SBB-24 can lift and move many different parts over the separating dam without jamming or hitting each other on the screen. The tub, with a 1-in. thick polyurethane lining that protects parts, can also serve as a thru-feed or one-pass machine when the dam is held in the up position.
A key benefit of the spiral design is its up-hill tub bottom that provides a larger rolling mass right to the screen area. This allows larger parts to be lifted up the dam and over the screening area. Larger parts can be processed in the tub because of greater clearance between the screen and the tub bottom.
Specifications of the SBB-24 include a 20-hp 1,800 rpm motor, a 17.5-in. diameter tub cross-section, an overall diameter of 73 in., and a machine height of 52 in. Overall machine dimensions are 96 in. long, excluding the electrical control box, and 82 in. wide.
- Wet or dry processing capabilities
- Space-saving, low-profile design for easy load and unload
- Curved polyurethane-lined bowl for maximum finishing action
- Extended screening deck for more effective parts & media separation
- Variable speed motor for process flexibility
