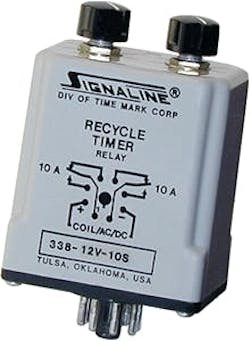

The Models 338 and 368 Recycle Timers are designed to cycle a load on and off, or to cycle between two loads. The ON and OFF cycles are independently adjustable on each model. The Model 338 is a DPDT, knob-adjust timer. The Model 368 is a DPDT, high-accuracy digital timer. Solid-state circuits in each model drive an internal electromechanical relay.

Each model is functionally interchangeable. They are available in a wide variety of voltage and timing ranges, to cover the majority of application requirements. Both the Model 338 and Model 368 are UL Recognized and CSA Certified, at supply voltages of 120 VAC or less.

Model

338

368

Supply Voltage

12, 24, 120 or 230 VAC/DC

Timing Range

1-10 seconds
1-60 seconds
1-180 seconds
1-300 seconds

0.1-102.3 seconds
1-1023 seconds
1-1023 minutes

Accuracy

±5%

±2%

Repeatability

 ±2%

±0.1%

Recycle Time

1 sec

100 msec

Contact Rating

DPDT   10A at 120VAC  resistive

Transient Protection

2500 VRMS for 10 msec

Operating Temp

- 40º to +140º F

Humidity Tolerance

0-97% w/o condensation

Enclosure Material

ABS Plastic

Mounting

8-pin socket (*not included)

Weight

5 oz.

Agency Approval

Model 338:  UL Recognized & CSA/NRTL to 120V
Model 368:  UL Recognized to 120V; CSA NRTL to 240V

*order 8-pin socket number 51X120







ORDERING OPTIONS

MODEL

VOLTS

DELAY

338 (knob-adj)

12VAC/DC

338 ONLY

368 ONLY

 368 (digital)

 24VAC/DC

10 seconds

 0.1 seconds



 120VAC/DC

60 seconds

 1 Second



230VAC/DC

180 seconds

 1 Minute



300 seconds



 EXAMPLE:  338-24-180 orders knob-adjustable 24VAC/DC timer, with a range of 1 to 180 seconds.
