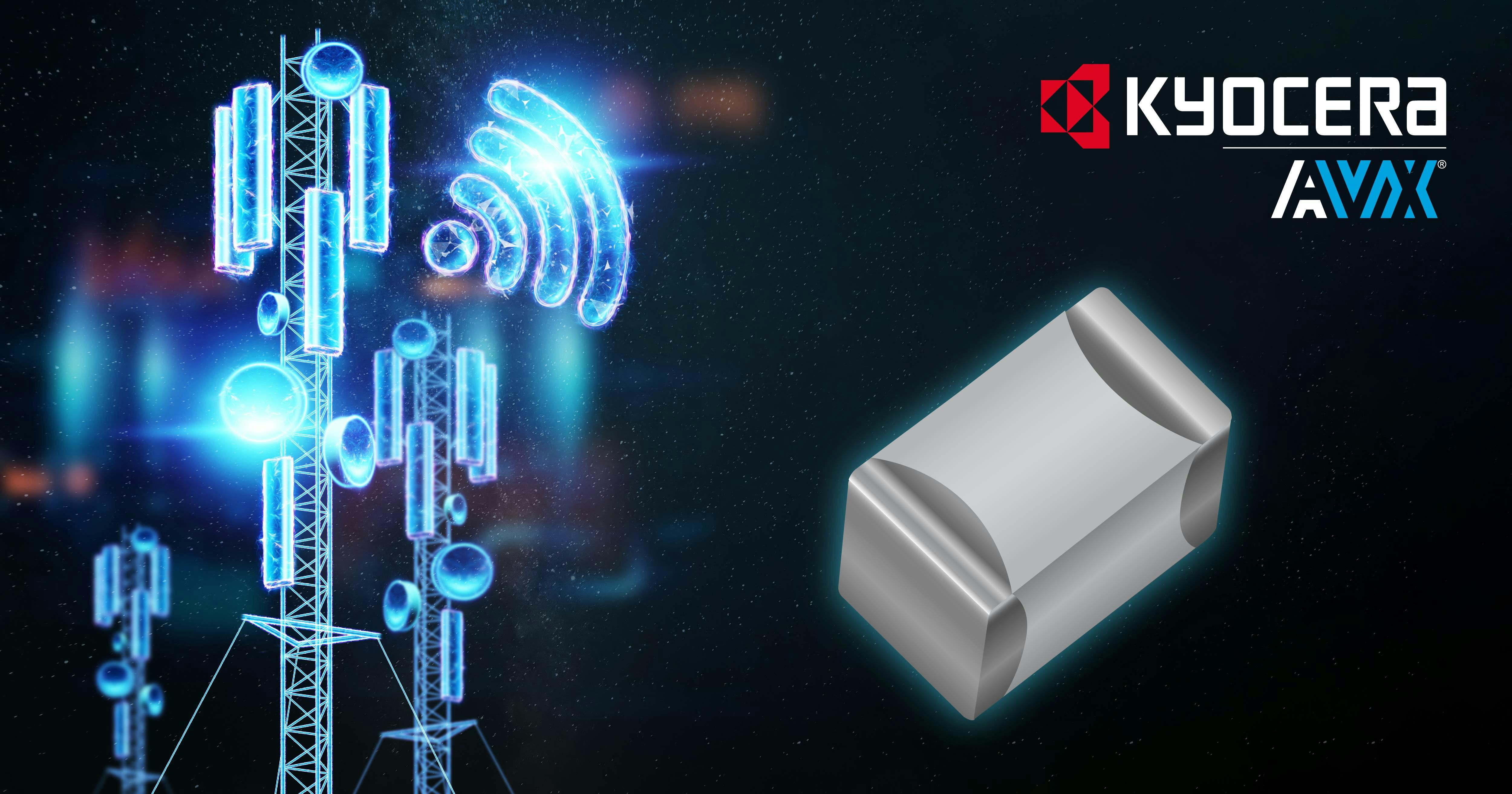

Ultra-low-ESR KGU Series C0G RF Multilayer Ceramic Chip Capacitors

Ultra-low-ESR KGU Series C0G (NP0) RF multilayer ceramic chip capacitors (MLCCs) pack multiple performance advantages optimized for communications applications into four miniature EIA chip sizes ranging from 01005 to 0805. The series features Class I C0G (NP0) ceramic dielectric materials, which are one of the most stable capacitor dielectrics available—exhibiting a temperature coefficient of capacitance (TCC) of 0±30ppm/°C and essentially zero voltage coefficient, and base metal electrodes made of copper plated with a tin/nickel alloy, which deliver high capacitance-voltage (CV) capabilities in small case sizes.

It also exhibits ultra-low equivalent series resistance (ESR), high power, high Q, high self-resonant frequencies (SRF), and tight tolerances — all of which are beneficial for countless communications applications.

KGU Series RF MLCCs are currently available in four miniature EIA chip sizes (01005, 0402, 0603, and 0805) and rated for 16 to 250V, 0.1 to 100pF, tolerances as low as ±0.05pF, and operating temperatures extending from -40 to 125°C. Ideal applications for the series include filter networks, matching networks, high-Q frequency sources, and tuning, coupling, bypass, and DC blocking circuits in cellular base stations, 802.11 Wi-Fi networks, subscriber-based wireless devices, and broadband wireless, satellite communications, and public safety radio systems.

Additional features of the KGU Series RF MLCCs include RoHS compliance, resistance to thermal shock, long lifetime performance, a lack of both aging and piezoelectric effects, and tape and reel packaging for automated assembly.

To order, visit DigiKey, Mouser Electronics, and Richardson RFPD.

KYOCERA AVX
Fountain Inn, SC
(864) 967-2150
[email protected]
kyocera-avx.com
