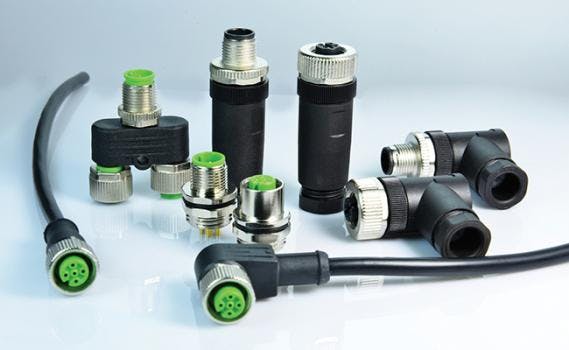

Harsh environment connector offering now includes a wide range of M12 connectors for industrial I/O and sensing applications.
Field-proven, IP67 connectors support various protocols via A, B, and D code options built into the male/female mating connectors, including fieldbus applications such as Profibus and EtherNetIP. Designed for advanced sensor and actuator applications, several of the the M12 Series connectors are field installable.
The M12 connectors are designed to meet industrial requirements, including the IEC 61076-2-101 standard. Offered in straight and right-angle versions, the IP67/IP68-rated male and female connectors are available with coupling nuts in brass or stainless steel to ensure connectivity in rugged and high-vibration environments.
Specifications:
- pin configuration & termination varies from 3, 4, 5, and 8 pins with screw-in termination (12 pins with solder termination)
- offering includes metal & plastic unshielded connectors for 4 to 7.5-mm cables
- rated voltage up to 250 v
- current rating up to 4 amp
- –25 to 85°C operating temp range
