    DAG20-120-01 and DAG20-120-04 Elevator Stages

    Aug. 19, 2022
    Optimal Engineering Systems' DAG20-120-01 and DAG20-120-04 feature resolutions of 0.000001 in. (0.03 ?m).
    Related To: Optimal Engineering Systems, Inc.
    66673c4594f10f00083721af 830 350

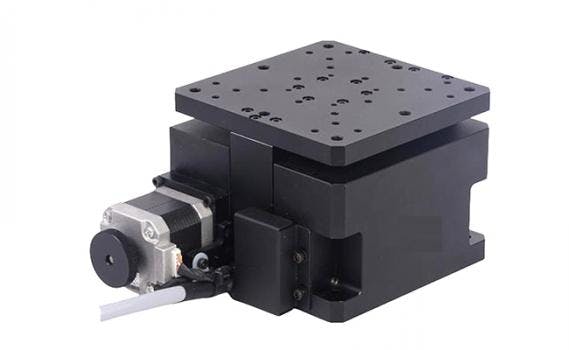

    The DAG20-120-01 and DAG20-120-04 are high resolution, compact, low profile elevator stages. They feature high stability 4.7 x 4.7 in. (120 x 120 mm) tables and 0.79 in. (20 mm) of vertical travel. High precision ball bearing profile rails assure very high parallelism and smooth motion throughout the raising and lowering of the table.  These Z-axis stages are ideal for microscopy, inspection, metrology, positioning, photonics, sampling, and laser drilling and machining.



    The black anodized aluminum alloy stages are driven by Two-Phase Stepper Motors, feature 0.00008 in. (2 ?m) positioning accuracy, and resolutions of 0.000001 in. (0.03 ?m) (with a 10 Micro-steps per step motor driver in use). The DAG20-120-01 has a knob for manual adjustment, while the DAG20-120-04 has a Quadrature Incremental Optical Encoder for position verification.



    The table of each stage has a precise pattern of threaded holes for fixtures or tooling, and holes in the base allow for easy integration into a new or existing application.

    • Table size: 4.7 x 4.7 in. (120 x 120 mm)
    • Range of travel: 0.79 in. (20 mm)
    • Load capacity: 44 lb. (20 kg)
