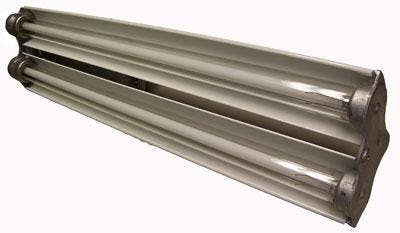

Explosion Proof Emergency Fluorescent light Combination - 4 foot - 2 T12-HO lamps - Class I, Div I
The Magnalight EPL-EMG-48-2L-T12HO Explosion Proof Emergency Lights & Fluorescent light Combination is U.S./Canada U.L. approved Class 1 Division 1, Class 1 Division 2 and ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist.
The EPL-EMG-48-2L-T12HO is a 4 foot long, 2 lamp, UL listed Class 1 Division 1 and Class 2 Division 1and 2 explosion proof fluorescent light which is equipped with an added battery backup providing 90 minutes of emergency runtime. This T6 temperature rated fixture comes standard with two T-12HO fluorescent lamps which produce a combined 8,100 lumens of light. This fixture is multi-voltage capable and provides operators in hazardous locations with a reliable and durable lighting solution that provides explosion proof protection along with the security of an emergency battery backup.
EPL-EMG-48-2L-T12HO Explosion Proof | U.L. Ratings |
UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
Dimensions: W-11.25" L-52" H-8.5 " | Class 1 Division 2, Group A,B,C,D |
Weight: 65 Lbs | UL 595 Outdoor Marine Type (Saltwater) |
Total Watts: 120 watts* | UL 844, 924 |
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz | UL 1598 Marine Type |
Total Lumens: F48-T12/HO Bulbs 8,100 | Class II Division 1- 2, Groups E,F,G |
Lamp Life Expectancy: F48-T12/HO Bulbs 12,000 Hours | UL Certified Canadian Standards |
Efficiency: F48-T12/HO Bulbs N/A | UL listed for Paint Spray Booths* |
Operating Temp Range: T6 Rated -30 C to 70 C Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
Beam Angle: N/A | Special Orders- Requirements |
Color Temp: 4100K- | Contact us for special requirements |
Mounting: Bracket Standard - Pendant Optional | |
Wiring Hub: 1/2 inch threaded | |
U.L Approval: U.S Certificate Canada Certificate | |
*Wattage totals are lamps only and may vary with different lamps. |
