Explosion Proof LED Lights for Paint Spray Booth - Class 1 & 2 Division 1 - 4 Foot 4 Lamp - T6 Temp

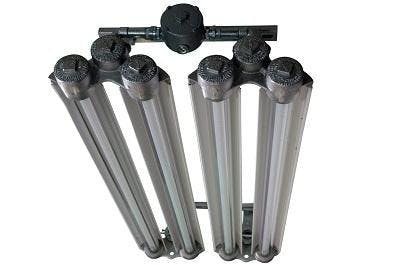

The Magnalight EPL-48-4L-LED is U.S./Canada U.L. approved Class 1 Division 1 - Class II, Division 1 and 2, has a T6 temperature rating and is an ideal lighting solution for areas where flammable petrochemical vapors and/or pulverized dust exist or have the potential to exist.
This 4 foot long 4 LED tube fixture is ideal for operators seeking a top quality explosion proof light that will reduce operating costs, improve lighting quality and reduce downtime incurred from frequent servicing intervals. The EPL-48-4L-LED is equipped with Magnalight’s specially designed LED T-series bulbs which produce nearly 15% more light than standard T8 bulbs. Our new LED-T series bulbs are visibly brighter than standard T8s and have consistently surprised many of our customers with their unexpectedly high light output levels.
This 4 LED bulb explosion proof fixture is lighter in weight, has a slimmer profile, and produces more light than traditional explosion proof fluorescent fixtures. The 4 foot long LED tube design bulbs included with this unit are rated at 50,000 hours of service life, which is over twice as long as standard T8 bulbs.
This fixture carries a T6 temperature rating and is U.L. approved Class 1 Division 1, Groups C and D, Class 1 Division 2, Group A,B,C and D, and Class II, Division 1 and 2, Groups E, F and G.EPL-48-4L-LED Explosion Proof | U.L. Ratings |
UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
Dimensions: W-22.50" L-52" H-8.5 " | Class 1 Division 2, Groups A,B,C,D |
Weight: 95 Lbs | Class II, Division 1&2, Groups E,F,G |
Total Watts: 96 watts | UL 595 Outdoor Marine Type (Saltwater) |
Voltage: Multi- 120V-60hz 220V-50hz 240V-60hz 277V-60hz | UL 1598 Marine Type |
Low Voltage (Optional): 12-24V DC | UL Certified Canadian Standards |
LED Lamp Life Expectancy: 50,000+ Hours | UL listed for Paint Spray Booths |
Efficiency: 90 Lumens per Watt | UL 844 924 California Title 24 Compliant |
Ambient Operating Temp Range: -30 C to 85 C Operating Temp Rating: T6 Rated Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
Beam Angle: 150 degrees | Special Orders- Requirements |
Color Temp: 5300K- | Contact us for special requirements |
Mounting: Unistrut- surface mounts | |
Wiring Hub: 1/2 inch threaded | |
Warranty: YES- 5 Years* | |
U.L Approval: U.S Certificate Canada Certificate | |
*5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
