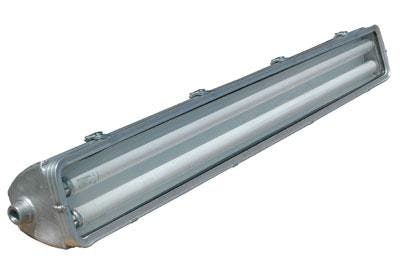

Class 1 Division 2 Fluorescent Light - 4 foot 2 lamp - UV bulbs - 8 foot cord
The Magnalight Hal-48-2L-UV-8 Hazardous Location UV Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 2 . This fixture uses a special ballast and bulb combination to produce ultraviolet light. This lamp is T4C temperature rated and ideal for hazardous locations where UV lamps are used to cure coatings and adhesives or as germicidal agents.
The Hal-48-2L-UV-8 fixture is a 4 foot long, 2 lamp, UL listed Class 1 Division 2 hazardous location fluorescent light that emits light in the ultraviolet spectrum. The Hal-48-2L-UV-8 can be configured to produce UVA or UVC light which is typically used for curing coatings or adhesives, pest management or in germicidal applications. The lamps are protected by an aluminum framed hinged glass door secured with four turn latches and the fixture is constructed of copper free aluminum alloy. The lamp reflector is corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. This fixture, like our other UV lights operates on 120 VAC only.
The HAL-48-2L-UV-8 is equipped with an 8 foot cord and provides operators in hazardous locations with a reliable and durable UV lighting solution for open areas where flammable chemicals and vapors may occasionally be present.
HAL-48-2L-UV-8 Hazardous Location Ultraviolet | U.L. Ratings |
UL Listing: United States - Canada | Class 1 Division 2, Groups A,B,C,D |
Dimensions: W-7" L-49 3/4" H-6 1/8 " | UL 595 Outdoor Marine Type (Saltwater) |
Weight: 33Lbs | UL 1598 Marine Type |
Total Watts: N/A* | UL approval- U.S/ Canada Standards California Title 24 Compliant |
Voltage: 120V-60hz | |
Total Lumens: T8 UV Bulbs N/A | |
Lamp Life Expectancy: T8 UV Bulbs N/A | |
Efficiency: T8 UV Bulbs N/A | |
Operating Temp Range: T4C Rated -30 C to 70 C | |
Beam Angle: N/A | Special Orders- Requirements |
Color: Ultraviolet- 400nm-315nm, 280nm-100nm | Contact us for special requirements |
Mounting: Bracket Standard Sliding Bracket Optional | |
Wiring: 8 Foot Cord | |
U.L Approval: U.S Certificate Canada Certificate | |
Made in the USA | |
*Wattage totals vary with different lamp options. |
