140 Watt LED Explosion Proof Quadpod - Dual 70 Watt LED Heads - 100 foot cord - 11,600 Lumens

Jan. 24, 2013

The EPL-QP-2X70LED-100 Explosion Proof LED Light from Magnalight is rated Class 1 Division 1 Groups C and D and uses two LED light heads to produce 11,600 lumens of light while drawing only 140 watts.

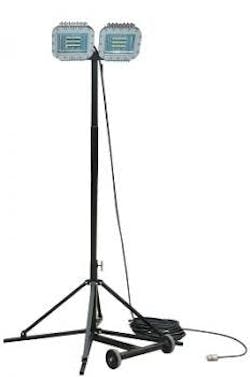

The EPL-QP-2X70LED-100 is a quadpod mounted explosion proof LED light and provides 8,000 square feet of work area coverage with 11,600 lumens of light output. This portable LED quadpod light has dual removable LED light heads mounted on top of a two wheeled aluminum quadpod for easy positioning of the unit from one area of the workspace to another. The LED light head on this unit produces a wide flood pattern of light that is ideal for illuminating enclosed areas such as tanks and containers and is suitable for hazardous locations where flammable vapors, gases and dusts may be present.

EPL-QP-2X70LED-100 Explosion Proof LED Quadpod Quick Summary
UL Listing: United States Class 1 Division 1, Groups C and D
Dimensions: 10.7""L x 9.7"W x 5.8"D -Light head - 4' to 12' Extendible Quadpod Class 1 Division 2, Group A,B,C,D
Weight: 50 Lbs Class II, Division 1 - 2, Groups E,F,G
Total Watts: 140 watts UL Certified U.S. Standards
Voltage: 120V-60hz 220V-50hz 240V-60hz 277V-60hz ECP1523 Class 1 explosion proof plug
LED Lamp Lumens: 11,600
LED Lamp Life Expectancy: 60,000 Hours
Mounting: Non Sparking Wheeled Aluminum Quadpod
Wiring: 100 feet SOOW Cord Explosion Proof Straight Blade Plug
Operating Temp Range: T4A Rated -40C to 60C Special Orders- Requirements
Beam Lux: 8500@ 1 Meter 1250@ 3 Meters Contact us for special requirements
Color Temp: 6000K
