    Explosion Proof-Tripod Mount-Single 150 Watt Led Light-100 foot cord

    Jan. 24, 2013
    Related To: Larson Electronics LLC
    666732e974c1d40008e3d1d7 830 350

    The EPL-BS-161M-TP1-100 Explosion Proof LED Light from Magnalight is rated Class 1 Division 1-2 Groups C , D and Class 2 Division 1-2 and uses a 16 inch LED light head to produce 10,000 lumens of light while drawing only 150 watts.

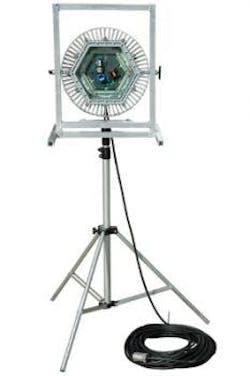

    The EPL-BS-161M-TP1-100 is a tripod mounted explosion proof LED light and provides 8,000 square feet of work area coverage with 10,000 lumens of light output. This portable LED tripod light has a removable LED light head measuring 16 inches in diameter mounted on top of an adjustable aluminum tripod for easy positioniong of the unit from one area of the workspace to another. The LED light head on this unit produces a wide flood pattern of light that is ideal for illuminating enclosed areas such as tanks and containers and is suitable for hazardous locations where flammable vapors, gases and dusts may be present. Aluminum construction, high power LED light output, and a high degree of adjustability, make this an ideal lightweight alternative to heavy traditional metal halide or incandescent tripod lighting systems.

    Further functionality has been added to this light through the inclusion of a specially designed lamp bracket that allows operators to remove the lamp assembly from the tripod and use the lamp as a portable pedestal mounted light. Previous designs allowed the lamp head to be removed for easy stowing and transport only, but this new pedestal top design now allows the lamp assembly to sit solidly on the floor when removed. This new feature makes this explosion proof light extremely versatile as well as portable and ideal for a very wide range of applications.
    EPL-BS-161M-TP1-100 Explosion Proof LED Tripod Ratings / Approvals
    UL Listing: United States Class 1 Division 1, Groups C and D
    Dimensions: 16" Light head - 3' to 12' Extendable Tripod Class 1 Division 2, Group A,B,C,D
    Weight: 50 Lbs Class II, Division 1 - 2, Groups E,F,G
    Total Watts: 150 watts UL Certified U.S. Standards
    Voltage: 120V-60hz  220V-50hz  240V-60hz  277V-60hz ECP1523 Class 1 explosion proof plug
    Operating Temp Range: T5 Rated   -40C to 65C
    LED Lamp Life Expectancy: 60,000 Hours
    Mounting: Non Sparking Aluminum Tripod/Removable Pedestal Type Lamp
    Wiring: 100 feet SOOW Cord, Explosion Proof Straight Blade Plug
    Color Temp: 6000K
    Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
