Hazardous Area Light - 400 Watt Metal Halide - Extendible Tower w/ Wheels - Class 1 Division 2
Jan. 24, 2013
Related To: Larson Electronics LLC
The Magnalight HAL-1X400MCE Explosion Proof Portable Light Tower from Magnalight is rated Class 1 Division 2, Groups C & D and uses two 400 watt metal halide lamps to produce 36,000 lumens of light capable of illuminating 25,000 square feet of work area.

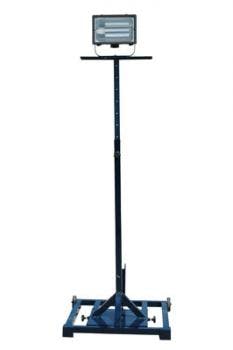

The HAL-1X400C explosion proof portable light tower is U.L. approved Class 1, Division 2 for Groups C and D and provides 25,000 square foot of coverage with a 36,000 lumen light output. This unit consists of a 400 watt metal Halide lamp mounted on top of an aluminum cart with solid rubber wheels, an extendable center tower, and provides a portable and easily deployed source of hazardous location illumination.
| HAL-1X400MCE | Quick Summary |
| Total Lumens: 36,000 | Class 1 Division 2, Groups C and D |
| Dimensions Lamp Only: 14"-D X 11"-H X 15"-W | UL1598 Outdoor Marine Use |
| Weight: 80 Lbs | IP65 Construction |
| Total Watts: 400 watts | UL Certified U.S. Standards |
| Voltage: 110-277VAC | 36,000 Lumens- 25,000 Sq Ft Coverage |
| Operating Temp Range: T1 Rated | ECP1523 Class 1 explosion proof plug |
| Lamp Life Expectancy: 20,000+ Hours (Metal Halide Average) | T1 Temperature Rating |
| Mounting: Non Sparking Wheeled Aluminum Tower | |
| Wiring: 50 feet 14/3 SOOW Cord- ECP1523 Explosion Proof Plug | |
| Lighting Configuration: Flood Pattern |
