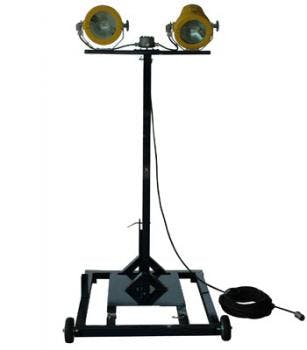

Explosion Proof Light - Extends from 4.5' to 8.5' - Class 1 Div. 1 - 2 X 70 Watt Metal Halide Lights

Jan. 24, 2013

The Magnalight EPL-TP-2X70-100E Tripod Mounted Explosion Proof Light is U.L. approved Class 1 Division 1 and is rated for use in wet environments. The tripod mount and metal halide lamps used with this unit provide operators with excellent power and efficiency coupled with high versatility and ease of use.

Two 70 watt, explosion proof, metal halide lamps mounted on our non-sparking adjustable and wheeled tripod gives operators an easily deployable source of powerful light that can be quickly setup and adjusted to effectively illuminate hazardous work areas. This unit contains two 70 watt, dual ended, metal halide lamps and is capable of illuminating 26,000 square feet of work space with 65,000 lumens of light. The two 70 watt metal halide lamps on this unit produce illumination equivalent to two typical 400 watt halogen lamps while drawing only 140 watts at 1.1 amps.

The metal halide lamps run cooler than 400 watt halogen lamps, resulting in an easier to handle unit and less heat in the workspace. This unit's durability, easy deployment, high power and the good color rendering of its metal halide lamps make it ideal for close work and hazardous areas where safety, detail and accuracy are critical.

EPL-TP-2X70-100 Tripod Mounted U.L. Ratings
UL Listing: United States - Canada Class 1, Division 1, Groups C & D
Dimensions Lamp Only: W-13 1/4"  D-12 1/2"  H-15 7/8" Class II, Division 1, Groups F & G
Weight: 95 Lbs including tripod Class III
Total Watts: 140 watts UL-CSA certified 844 Hazardous Locations
Voltage: 120 Volts AC, 1.1 amp draw   ECP 1523 5-15P explosion proof plug
Coverage: 26,000 square feet UL 781
Lamp Life Expectancy: 2500+ Hours UL 595 Marine type
Lamp Type: Metal Halide
Operating Temp Range: T4 rated
Mounting:  4.5' to 8' Extendable Wheeled Tripod Special Orders- Requirements
Wiring: 2-100 ft SOOW Cords ECP1523 plugs Contact us for special requirements
Total Lumens: 65,000
U.L Approval: U.S Certificate Canada Certificate
