150KA Power Distribution System - 600V 3 Phase - Ten ADR1044 100A Outlets

Made in the USA

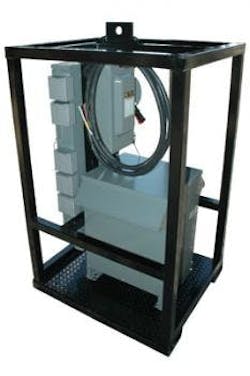

The Magnalight MGS-150KVA-600-10X100A heavy duty power transformer substation series converts 600V three phase electrical current to single phase 120V AC and 208Y AC. This unit provides operators the ability to safely tap into and distribute 600VAC power from a variety of sources including generators and direct grid power. This model is designed to support both linear (motor) and non-linear loads (lighting, computers, etc). For that reason, we deliver 120V and 208Y on the secondary and provide a neutral.

The MGS-150KVA-600-10X100A power distribution substation provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs, and any activities requiring an alternative to native power sources. This unit is designed to operate with a 600V 3 phase primary which it then steps down to 120V single phase and 208Y three phase. This transformer provides secondary power via 4 GFCI protected 120V receptacles and ten ADR1044 100 amp 4 wire 4 pole receptacles for 3 phase 208Y.
