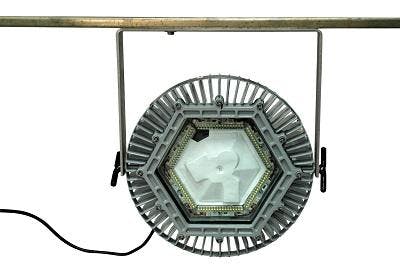

Explosion Proof 150 Watt LED Light Fixture w/ Stainless Steel Unistrut Mounting Bracket

Jan. 24, 2013

The Magnalight HBLP-1MLED-WFM light fixture provides operators with a powerful and energy efficient alternative to traditional hazardous location luminaries. LED technology and compact design makes this lamp an excellent replacement upgrade option for bulky and high maintenance cost older fixtures.

This Class 1 Division 1 & 2, Class 2 Division 1 & 2 explosion proof light fixture provides 10,000 lumens of high quality light while drawing only 150 watts. The copper free aluminum alloy body is powder coated for added durability and an attractive aesthetic appearance. Special heat dissipating design in conjunction with LED technology helps this fixture to achieve an excellent 60,000 hour rated lifespan with 80% lumen retention. Light weight and a low profile make this unit an attractive alternative to larger and heavier older fixtures.

A 316 stainless steel unistrut mounting bracket provides adjustable mounting for this 150 Watt Explosion Proof LED fixture and allows users to position the light as needed.

This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz without any need for a special ballast. The aluminum body and LED lamp give this light excellent durability and resistance to vibration and impacts. The housing is specially designed to dissipate heat which increases the efficiency and lifespan of the LED luminaries. The LED lamp produces 10,000 lumens with a color temperature of 6000K and a color rendering index of 70 which produces colors and details much more accurately than high pressure sodium or mercury vapor luminaries.

HBLP-1MLED-WFM SS Unistrut 150W LED Ratings
Lamp Type: LED T5 Temperature Rating
Dimensions: Light Head: 16" Diameter, 5" Thickness Class 1 Division 1&2 Groups C and D
Total Watts: 150W Class 2 Division 1&2 Groups E,F,G
Lumens: 10,000 Class 3 Division 1&2
Voltage: 100-277 VAC, 50/60Hz CSA Certified to C22.2 No.137-M81
Lighting Configuration: Flood Pattern cETL Certified to UL844 and C22.2 Standards
Mounting: Stainless steel mounting bracket
Weight: 38lbs
Termination: 20 foot SOOW - no plug
Temp Rating: T5 -40C to +65C Special Orders- Requirements
Color Temp: 6000K, 70-CRI. Contact us for special requirements
Lamp Life: 60,000+ Hours
