    Explosion Proof LED Light - Magnetic Mount - Aluminum Base - Single 150 Watt Led Light

    Jan. 24, 2013
    Related To: Larson Electronics LLC
    666732bcc40378000847349b 830 350

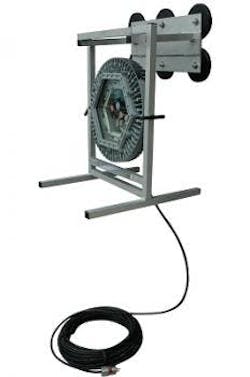

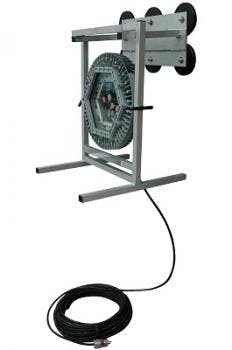

    The EPL-MB-161M-100 Magnetic Mount Explosion Proof LED Light from Magnalight is rated Class 1 Division 1-2 Groups C & D and Class 2 Division 1-2 and uses a 16 inch LED light head to produce 10,000 lumens of light while drawing only 150 watts.



    The EPL-MB-161M-100 magnetic mount explosion proof LED light provides 8,000 square feet of work area coverage with 10,000 lumens of light output. This portable LED light is mounted to a spun aluminum base and has an LED light head measuring 16 inches in diameter. This unit includes a magnetic mounting attachment that allows mounting the fixture to metallic surfaces for added versatility and easy setup. The LED light head on this unit produces a brilliant flood pattern of light that is ideal for illuminating enclosed areas and hazardous locations where flamable vapors, gases and dusts may be present.

    EPL-MB-161M-100 Magnetic Mount Explosion Proof  LightCertification / Approvals UL Listing: United States Class 1 Division 1, Groups C and D Dimensions: 16' Light head  Class 1 Division 2, Group A,B,C,D Weight: 30 Lbs Class II, Division 1 - 2, Groups E,F,G Total Watts: 150 watts UL Certified U.S. Standards Voltage: Configurable 120V-60hz  220V-50hz  240V-60hz  277V-60hz ECP1523 Class 1 explosion proof plug LED Lamp Lumens: 10,000 LED Lamp Life Expectancy: 60,000 Hours Mounting: Aluminum Base Stand Wiring: 100 feet SOOW Cord Explosion Proof Straight Blade Plug
    Operating Temp Range: T5 Rated   -40C to 65C
    Color Temp: 6000K
    Beam Lux: 8500@ 1 Meter 1250@ 3 Meters
    LED Lamp Life Expectancy: 60,000 Hours
