Hazardous Area Lighting - 2 X 400 Watt Metal Halide - Portable Cart - Class I, Div. II
Jan. 24, 2013
Related To: Larson Electronics LLC

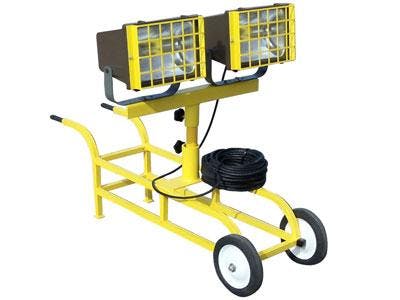

The HAL-2X400C Explosion Proof Portable Cart Light from Magnalight is rated Class 1 Division 2, Groups A, B, C & D and uses two 400 watt metal halide lamps to produce 72,000 lumens of light capable of illuminating 50,000 square feet of work area.
The HAL-2X400C explosion proof portable cart light is U.L. approved Class 1, Division 2 for Groups A, B, C and D and provides 50,000 square foot of coverage with a 72,000 lumen light output. This unit consists of two 400 watt metal Halide lamps mounted on top of an aluminum cart with solid rubber wheels and provides a portable and easily deployed source of hazardous location illumination.
HAL-2X400C Explosion Proof Cart LightQuick Summary| Total Lumens: 72,000 | Class 1 Division 2, Groups A, B C, D |
| Dimensions Each Lamp Only: 14"-D X 11"-H X 15"-W | UL1598 Outdoor Marine Use |
| Weight: 110 Lbs | IP65 Construction |
| Total Watts: 800 watts | UL Certified U.S. Standards |
| Voltage: 120-277/60, 480, 220/50 | 72,000 Lumens- |
| Operating Temp Range: T1 Rated | ECP1523 explosion proof plug |
| Lamp Life Expectancy: 20,000+ Hours (Metal Halide Average) | T1 Temperature Rating |
| Mounting: Non Sparking Aluminum Cart | 50,000 Sq Ft Coverage |
| Wiring:250 feet 14/3 SOOW Cord- ECP1523 Explosion Proof Plug | |
| Lighting Configuration: Flood Pattern |
