150KA Power Distribution System - 480V 3 Phase - Ten ADR1044 100A Outlets
The Magnalight MGS-150KVA-480-10X100A heavy duty power transformer substation series converts 480V three phase electrical current to single phase 120V AC and 240V (208Y) AC. This unit provides operators the ability to safely tap into and distribute 480VAC power from a variety of sources including generators and direct grid power. This model is designed to support both linear (motor) and non-linear loads (lighting, computers, etc). For that reason, we deliver 120V and 208Y on the secondary and provide a neutral.
The MGS-150KVA-480-10X100A power distribution substation provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs and any activities requiring an alternative to native power sources. This unit is designed to operate with a 480V 3 phase primary which it then steps down to 120V single phase and 240 (208Y) VAC. This transformer provides secondary power via 4 GFCI protected 120V receptacles and ten ADR1044 100 amp 4 wire 4 pole receptacles for 3 phase 208Y.

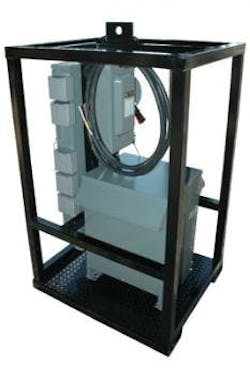

The operator provides line in cord that connects to a 400 amp fused ON/OFF disconnect switch which controls current to the 150 KVA, 480 Volt 3 phase transformer with Nema 3r configuration. The transformer is mounted to a 1/8” thick diamond plate and the distribution assembly is mounted onto a rugged 2 inch square carbon steel frame with 3X6X3/8 rectangular carbon steel skid pockets and a top located lifting eyelet to allow easy transport.This unit is Nema 3r configured and ideal for use in applications including but not limited to, plant maintenance, hazardous location operations, welding stations, shows and exhibits and marine applications. This series of portable power distribution can support both motor and lighting loads.
Larson Electronics' Magnalight is a manufacturer and as such can build power distribution susbtations to your specifications. Although we carry several models of power distribution systems, we can deliver custom ordered units almost as quickly as our prebuilt units If this model does not meet your needs, please contact us.
| MGS-150KVA-480-10X100A Power Distribution System |
| Line In: 480 VAC Three Phase (operator provides cord) | |
| Transformer KVA: 150 | |
| Line Out: 120VAC - 208Y VAC | |
| 120 VAC Outlets: 4 X 120V 20amp GFI | |
| 208Y Outlets: 10 X 100 amp ADR1044 | |
| Protection: GFCI Outlets, Onboard Circuit Breakers | |
| Mounting: Skid and Lifting Eyelet Equipped Steel Frame | |
| Panel: 200 amp 3 phase | |
| Weight: 650 pounds | Special Orders- Requirements |
| Dimensions: 48"W X 40"D X 56"T | Contact us for special requirements |
| Disconnect: 400 amp fused | |
| Breakers: 10 X 100 amp 3 phase & 4 X 20 amp |
