25KVA - Power Distribution Substation - 240V 3P Primary - 120/208V Secondary - 16 Receptacles

Made in the USA

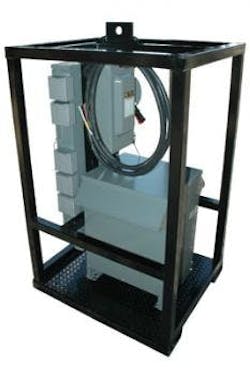

The Magnalight MGS-25KVA-240/3P-120/208Y-16O heavy duty power transformer substation converts 240 AC three phase electrical current to single phase 120/208Y AC. This unit provides operators the ability to safely tap into and distribute 240VAC three phase power from a variety of sources including generators and direct grid power. This model is designed to support both linear (motor) and non-linear loads (lighting, computers, etc.). For that reason, we deliver 120V and 208Y on the secondary and provide a nuetral.

The MGS-25KVA-240/3P-120/208Y-16O transformer provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs and any activities requiring an alternative to native power sources. This portable power distribution system makes 120VAC available via 16 GFCI protected 20 amp receptacles and 208Y VAC available via two GFCI protected 240VAC outlets.
