Explosion Proof Power Distribution - 1000VA - 120/240 VAC Stepdown to 24 Volts AC or DC
Made in the USA
The Magnalight EPL-220X24-TX4 explosion proof power transformer converts 220VAC at 50/60hz to 24 VDC and is ideal for powering 24 volt DC or AC based lights and equipment. This 1000VA system delivers 41 amps on 24 Volts AC or DC (customer choice).

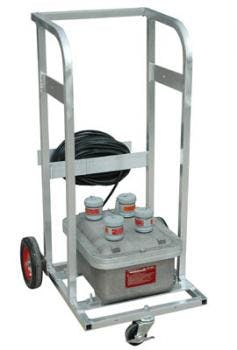

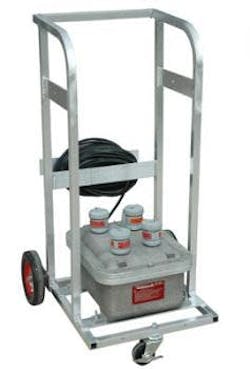

The EPL-220X24-TX4 explosion proof power transformer from Magnalight is built to provide operators in hazardous locations with a safe and reliable explosion proof approved source of low voltage 24 volt AC or DC power. This compact power distribution transformer is designed for portability and convenience as well as durability and is mounted to a non sparking aluminum frame with non-sparkin casters for added protection.
This portable AC to DC transformer features four Class I, Division 1 (and Class 2 Division 1) receptacles with twist lock operation to provide protection against sparking in hazardous environments.
| EPL-220X24-TX4 Explosion Proof Power Transformer | UL Listed |
| Line In: 220V @50/60Hz | Class 1, Division 1 |
| Line Out: Four Class 1/2, Div. 1 Receptacles 24V | Class 2, Division 1 |
| Wiring: 25' Explosion Proof Cord w/Explosion Proof Plug | Class 3 |
| Primary: 120VAC or 240VAC (Choose below) | |
| Secondary: 24 Volts AC or DC (Choose below) @ 41 amps | |
| VA: 1000 | |
| Weight: 75lbs | |
| Mounting: Portable Cart w/ Casters |
