Power Distribution System - 30KVA transformer - 480 1P to 120/240 1P - 20 X 120 Outlets and 2 X 240

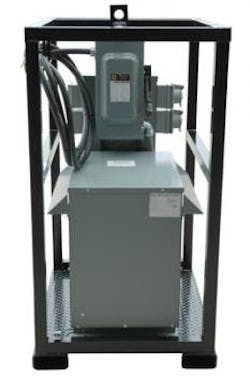

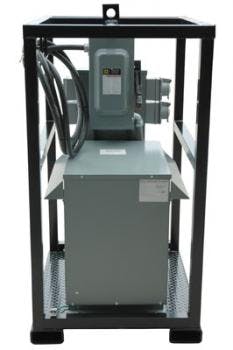

The Magnalight MGS-30KVA heavy duty power transformer substation converts 480 VAC single phase electrical current to single phase 120V AC and 240V AC. This unit provides operators the ability to safely tap into and distribute 480V AC power from a variety of sources including generators and direct grid power.

This model is designed for use for linear (motor) loads.

Made in the USA

The MGS-30KVA transformer provides a safe and effective way for operators in industrial settings to tap into and utilize power sources independently of the work area. This unit provides an effective power source for operators performing plant turnarounds, maintenance and cleaning in hazardous areas, equipment installations and repairs and any activities requiring an alternative to native power sources. This unit is designed to operate with 480 1P which it then steps down to 120V single phase and 240 VAC. This transformer makes 120VAC available via 20 GFCI protected 120 volt receptacles (10 double gang), each protected by a dedicated circuit breaker. This power distribution system also provides 2 GFCI protected outlets for 240V AC.
