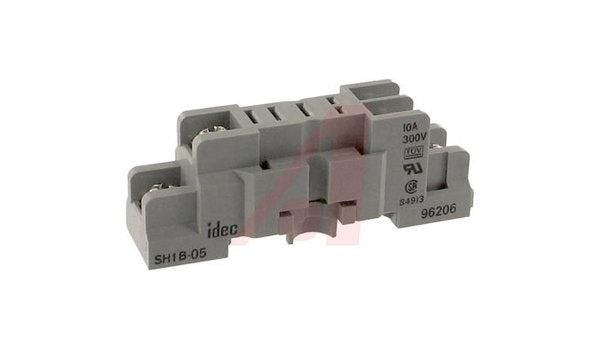

Socket, Relay; 5-Blade,Snap-Mount/Surface Mount,250V,10A
Feb. 20, 2013
Related To: Allied Electronics & Automation
10 A, 300 V Voltage Rating, 5 Number of Pins, SocketsSnap-mount sockets are designed to mount on BNDN-1000 mounting rail. The built-in mounting clip eliminates mounting hardware and reduces mounting time by eighty percent. For spacing between adjoining sockets, use SA-406 DIN rail spacer. Spacers : 0.197"" in width. Spacing can be adjusted according to the amount of spacers added. To prevent sideward movement, use BNL-5 end clip at each end of socket row.To Mount: Place socket on mounting rail and press down.To Remove: Pull clip out with screwdriver and lift socket. Mating Relay Series: RH1B Hold Down Spring: SY2S-02F1 Hold Down Clip: SFA-101 (top notch), SFA-202 (side notch)
SH and SY series panel mount sockets are designed to mount collectively in panel cut-outs. Insert socket with mounting springs facing the top and bottom edge of the panel cut-out. Push the socket until the mounting spring clips onto the panel. Type: Blade | Number of Pins: 5 | Current, Rating: 10A | Width: 0.707in. | Number of Contacts: 5 | Height: 1.063in. | Voltage, Rating: 300V | Mounting: DIN Rail/Panel Surface | Voltage Rating: 300V | Current Rating: 10A | Length: 1.22in. | Diameter, Hole: 0.102in. |
SH and SY series panel mount sockets are designed to mount collectively in panel cut-outs. Insert socket with mounting springs facing the top and bottom edge of the panel cut-out. Push the socket until the mounting spring clips onto the panel.
