Relay;E-Mech;Gen Purp;SPDT;Cur-Rtg 10A;Ctrl-V 24DC;Vol-Rtg 240/30AC/DC;Blade

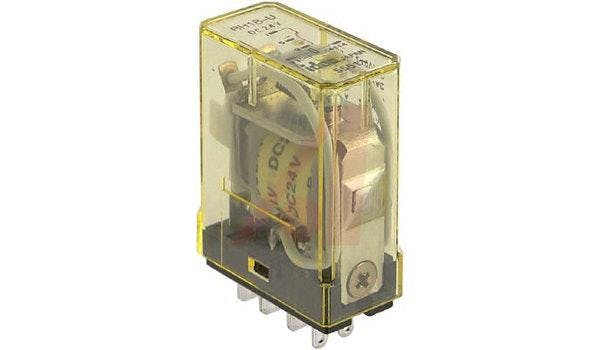

RH Series Power Relays10 amp switching capacity and blade terminals. UL recognized, CSA certified, CE marked. Specifications. Contact Resistance: 50 M? max. (initial value). Operate Time and Release Time: SPDT, DPDT — 20 msec. max.; 3PDT, 4DPT — 25 msec. max. Insulation Resistance: 100 M? min. (measured at 500 VDC megger).Power Consumption: SPDT (AC) — 1.1 VA (50 Hz), 1 VA (60 Hz); SPDT (DC) — 0.8 W. DPDT (AC) — 1.4 VA (50 Hz), 1.2 VA (60 Hz); DPDT (DC) — 0.9 W. 3PDT (AC) — 2 VA (50 Hz), 1.7 VA (60 Hz); 3PDT (DC) — 1.5 W. 4PDT (AC) — 2.5 VA 2 VA (60 Hz); 4PDT (DC) — 1.5 W. Operating Temperature: –30°C to +70°C.Temperature Rise: Coil — 85°C max.; Contact — 65°C max.The RH series are miniature power relays with a large capacity. The RH relays feature 10 A contact capacity and the compact size saves space.Resistance, Coil: 750Ohms  |  Current Rating: 10A  |  Temperature, Operating, Maximum: 50°C  |  Relay Type: Electro Mechanical  |  Voltage, Control: 24VDC  |  Contact Form: SPDT  |  Standards: UL, CSA, CE, TUV  |  Brand/Series: RH Series  |  Voltage, Rating: 240VAC  |  Dimensions: 35.6 mm H x 14 mm W x 27.5 mm D  |  Termination: Plug-In Blade  |  Current, Rating: 10A  |  Resistance, Contact: 50 milliohms (Max.)  |  Voltage, Drop, On-State: 10% (Min.)  |  Function: General Purpose  |  Material, Contact: Silver Cadmium Oxide  |
