Brushless Motors

Oct. 28, 2016

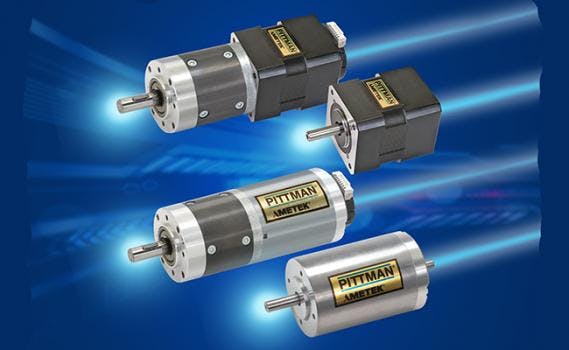

EC044A 44-mm brushless motors are available in a range of lengths, windings and gear ratios for several application. Performance ranges from 0.04Nm (6 oz-in) to 4Nm (600 oz-in) of rated torque with rated speeds from 40 to 4500 rpm. Stock gear ratios range from 4–100:1, and optional ratios go to 512:1 yielding 14Nm of output.

The EC042B effectively doubles rated torque in a smaller 42-mm diam. The performance ranges from 0.06Nm (9 oz-in) to 8.8Nm (1200 oz-in) of rated torque with rated speeds from 40 to 4500 rpm in stock solutions. The EC042B comes with the same options available in the EC044A in both stock and standard configurations.

Both come with the E30 encoder and PLG42S planetary gear that yield an outstanding level of performance in a compact assembly, and are available on PittmanExpress e-Commerce store with 24-hour shipment.



  • EC044A: 44-mm diameter/ Performance ranges from 0.04Nm (6 oz-in) to 4Nm (600 oz-in) of rated torque with rated speeds from 40 to 4500 rpm
  • EC042B: 42-mm diameter/ performance ranges from 0.06Nm (9 oz-in) to 8.8Nm (1200 oz-in) of rated torque with rated speeds from 40 to 4500 rpm in stock solutions
  • Available on PittmanExpress e-Commerce store
