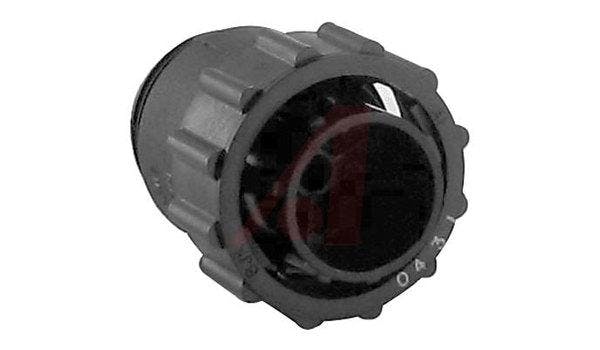

Connector, CPC; 7; Plug; Wire; 13; All Plastic; 3/4 in. - 20 UNEF-2A; Black

Connector, Plug, Number of Positions 7, Plastic Shell, Thermoplastic Housing, Black ColorCPC Connectors provide a substantial savings in weight and cost through the use of a plastic shell and a wide variety of pin and socket contacts. The various sizes and densities are supplied unloaded (without contacts). Recognized under the component program of Underwriters Laboratories, Inc. for 250 V service. UL File No. E28476. CSA Certified File No. LR 7189.  Series 1 . Standard density, multimate contacts for normal unsealed operations. Materials: 94 V-1 rated, heat stabilized, fire resistant, self extinguishing black thermoplastic. Contacts not included — order as a separate item. Note: Maximum wire insulation dia. is 0.100 (2.54) except for arrangement 23-24 which will accept insulation dia. of 0.150 (3.81) max.Primary Type: Circular Plastic Connector  |  Application: Commercial  |  Type: Cable Plug  |  Diameter, Insulation: 0.1"  |  Mating Type: Threaded  |  Agency Approvals: UL Recognized/CSA/VDE  |  Mounting Type: Free Hanging  |  Gender: Plug  |  Special Features: Reverse Gender  |  Material, Housing: Thermoplastic  |  Flammability Rating: UL94-V0  |  Number of Contacts: 7  |  Insert Arrangement: 13-7  |  Color: Black  |  Housing Type: Plastic  |  Brand/Series: Series 1  |  Angle: Straight  |  Shell Size: 13  |
