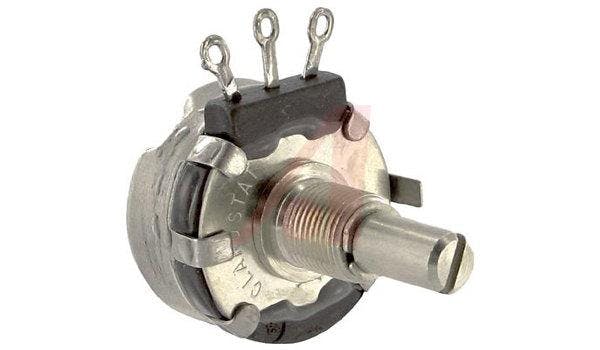

Pot;Cnd Pl;Rest 5 Kilohms;Panel;Linear;Pwr-Rtg 2W;Shaft Dia 0.25In

Crafted of the finest materials available to insure long, reliable service. Provides extra long life with very low noise level. Rated 2 watts. Precision construction is completely enclosed. Conductive plastic element. RV4L and 53C2 designate 5?8" screwdriver slotted shaft FMS with 1?2" split locking bushing. RV4N and 53C3 designate 7?8" screwdriver slotted shaft FMS with 3?8" long bushing. 53C1 designates 2" long round shaft FMS with 3?8" long bushing. All have 1?4" diameter shaft. Average Shipping Weight: 4 Oz.Specifications. Resistance Tolerance: 100 to 1 Meg — ±10%; over 1 Meg — ±20%. Rotation: 312° ±3%. End Resistance: Per MIL-R-94. Working Voltage: 500 VDC across end terminals. Linear taper.Angle, Mechanical: 312°  |  Dimensions: 1.094"Dia×0.56"L  |  Linearity: ±5%  |  Resistance: 5Kilohms  |  Taper: Linear  |  Termination: Lug  |  Diameter, Shaft: 0.25"  |  Type: Potentiometer  |  Rotational Life: 25000Cycles  |  Tolerance: ±10%  |  Material, Element: Conductive Plastic  |  Temperature, Operating, Maximum: +120°C  |  Temperature, Operating, Minimum: -55°C  |  Power, Rating: 2W  |  Mounting Type: Panel  |  Number of Turns: 1  |
