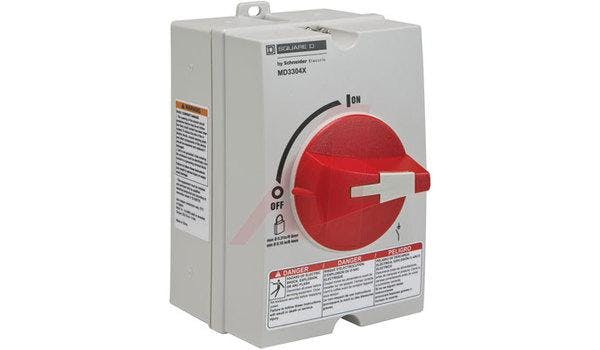

Schneider Electric's Square D brand has been an industry leader in safety switches for over 100 years and is recognized as the market leader in product quality, durability and reliability. The latest addition to the MD motor disconnect family is a non-receptacle switch for UL 508 listed applications. This MD motor disconnect switch serves as a local on/off switch for a motor when the motor branch circuit protection is in a central enclosure. It is in a compact NEMA 4X enclosure and is available in 30 A and 60 A versions.Benefits:Lower Costs — Significantly Less Expensive Than Stainless Steel Motor Disconnect Switches Enhance Safety — Handle Interlock Prevents Cover from Being Removed While in the “ON” Position Maximize Space — One of the Smallest Footprints on the Market
Features: Water-Tight NEMA 4X Polycarbonate Enclosure Ideal for Use in Wash Down or Rugged Industrial Applications — Covers Additional Enclosure Types, Such as NEMA 1, 12, 3R and 4 Standard 3-Pole Design — Optional Additional Power Pole Available in 30 A and 60 A Sizes Horsepower Rated Clear “ON/OFF” Indication
Front Padlockable Handle Complies with OSHA Lockout/Tagout Requirements — Accepts Up to Three 8mm Padlocks cULus Certified, UL File E164864 Phase:3 | Type:Enclosed Motor | Primary Type:Disconnect | Standards:UL 508, NEMA 4X | Current, Rating:30 | Enclosure Rating:NEMA 4X | Voltage, Rating:220-240/440-480/600 | Brand/Series:MD Series |
