Pneumatic ISO Cylinder

Jan. 22, 2018

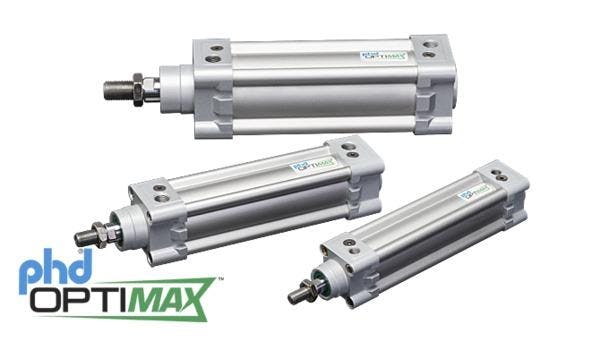

PHD presents the Optimax Series OCV Pneumatic ISO Cylinder. The Series OCV is designed to be extremely versatile and economical for use in any industry. It is PHD’s lower price alternative to the PHD Series CV Pneumatic ISO Cylinder, which has more options and longer cycle life. The Series OCV is available in 32, 40, and 50 mm bore sizes and stroke lengths are available in 25, 50, 100, and 200 mm.



The Series OCV features cushion controls to reduce impact at end of stroke, and a rod bearing and piston wear ring also provide support and smooth cycling. The Series OCV also features a self-compensating rod seal and wiper. To simplify installation and provide for interchangeability, the OCV has ISO mounting.

  • 32, 40, and 50 mm bore sizes
  • stroke lengths are available in 25, 50, 100, and 200 mm
  • cushion controls
