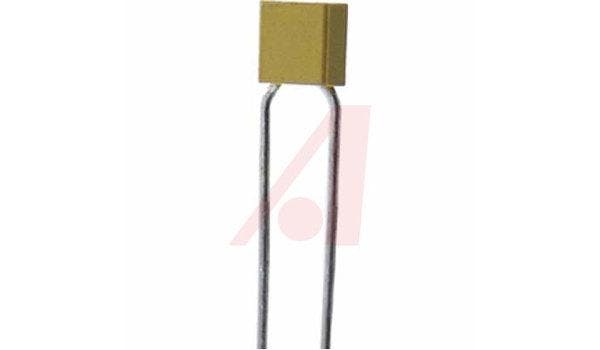

Capacitor;Ceramic;Cap 0.1 uF;Tol 10%;Vol-Rtg 50 VDC;Radial;BX

General Purpose

Molded Cases

Capacitance Range: 1000 pF to 1 ?F

Operating Temperature: –55°C to +125°C

Temperature Characteristic: BX = X7R

Height:0.190 in. ± 0.010 in. | Temperature, Operating, Maximum:125 | Case Code:CK05 | Termination:Radial | Capacitance:0.1 | Tolerance:±10 | Length:0.190 in. ± 0.010 in. | Material, Element:Ceramic | Temperature, Operating, Minimum:-55 | Dielectric Characteristic:BX | Standards:MIL-C-11015 | Voltage, Rating:50 | Temperature Coefficient:+15, -25% | Thickness:0.090 in. ± 0.010 in. |
