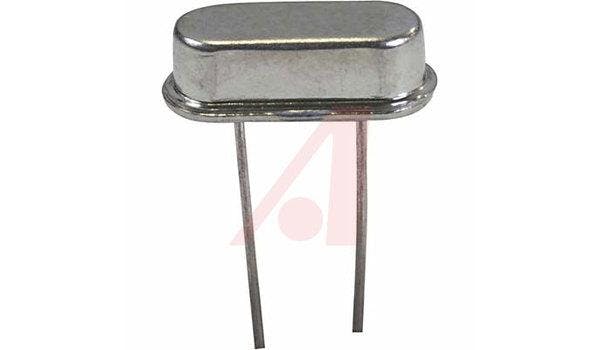

Crystal; 4 MHz; + 30 ppm @ degC; + 30 ppm @ degC; 7 pF (Max.); 10 pF (Min.)

The crystals are in low profile resistance welded hermetically sealed cases. Frequency Tolerance: ±50 PPM @ 25°C ±3°C. Temperature Stability: ±50 PPM. Operating Temperature: –20°C to +70°C. Shunt Capacitance: 7 pF maximum. Insulating spacer and/or tape and reel available as special order item.Mounting Type:TH | Temperature, Operating, Range:-20 to +70 | Drive Level:100 ?W (Typ.) | Capacitance, Load:20 | Frequency Stability:±30 | Mode, Operating:Fundamental | Frequency Range:4 | Frequency Tolerance:±30 | Temperature, Operating, Maximum:70 | Frequency:4 | Package Type:Miniature | ESR, Maximum:150 | Temperature, Stability:± 30 ppm @ +25 °C | Series Code:XT9S | Brand/Series:XT49S Series | Lead Pitch:0.192 | Capacitance, Shunt:7 pF (Max.) | Aging:+5.0 ppm (Max.) @ +25 °C?Yr | Load Capacitance:10 pF (Min.) | Temperature, Operating, Minimum:-20 |
