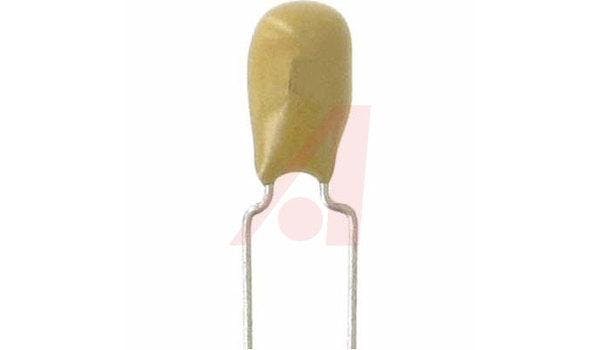

Capacitor;Tantalum;47uF;Tap Series;Radial;Case N;10%;35V;46VDC;0.8 Ohms ESR

TAP is a professional device manufactured with a flame-retardant coating and featuring ultra low leakage current and impedance, very small physical sizes and exceptional temperature stability. It is designed and conditioned to operate to +85°C without derating. The 15 case sizes with wide capacitance and working voltage ranges means the TAP can accommodate almost any requirement. Also available on tape and reel for auto insertion.
Features

Capacitance Range: 0.1 to 330 ?F

Voltage Range: 6.3 to 50 VDC

Tolerance: 10%

ESR, Test Condition:(Max.) @ 100 kHz | Temperature, Operating, Maximum:125 | Material, Element:Tantalum | Voltage, Rating:35 | ESR:0.8 | Capacitance:47 | Tolerance:±10 | Dimensions:0.390 in. H x 0.200 in. Dia. | Termination:Radial | Temperature, Operating, Minimum:-55 | Current, DC Leakage:10 uA (Max.) | Dissipation Factor:8% (Max.) | Lead Pitch:0.200 in. +?- 0.040 in. | Voltage, Rating, Test Condition:@ +85°C | Voltage, Surge, Test Condition:@ +85°C | Case Code:N | Voltage, Surge:46 |
