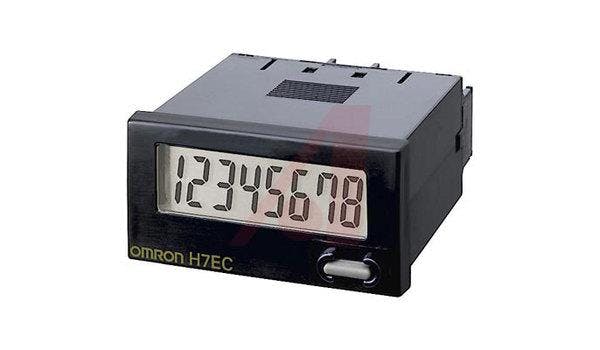

Count totalizer; Self-Powered; 24 VDC (Only for backlight); Contact; LCD 8 count

Features:

Large, Easy-to-Read (8.6 mm) LCD Display

Count Speed — 20 Hz, 30 Hz, 1 kHz — Up Counting

NPN/PNP DC, AC/DC Voltage and No-Voltage Inputs Types Available

4-Digit Tachometer: 1000 RPS (1 Pulse/Rev.), 1000 RPM (60 Pulse/Rev.)

Key-Protect Switch Prevents Accidental Reset (Count/Time Totalizers)

External “Reset” Front Face

Replaceable Battery — All Models

Screw Terminal

Specifications:

NEMA 4/IP65 Front Face

Display Range:0 to 99999999 | Memory Type:Lithium Battery | Termination:Screw Terminal | Voltage, Supply:24 | Display Digit Height:8.6 | Output Type:Contact | Weight:65 | Cut Out, Panel:45×22.2 | Range, Measurement:0 to 99999999 | Color, Case:Black | Counter Type:Self-Powered | Temperature, Operating, Range:-10 to +55 °C | Function:Counter | Signal, Input:No Voltage | Mounting Type:Panel | Number of Digits:6 | Display Type:LCD | Terminal Type:Screw Terminal | Connection Type:Screw | Dielectric Rating:1,000 VAC, 50?60 Hz for 1 | Dimensions:48.5mmL×48mmW×35mmH | Primary Type:Electronic | Standards:UL Recognized, CSA Certified, CE Marked | Input Type:Count | Type:Counter | Digit Height:9 | Frequency, Operating:30 Hz?1 kHz | Resistance, Insulation:100 M? (Min.) @ 500 VDC |
