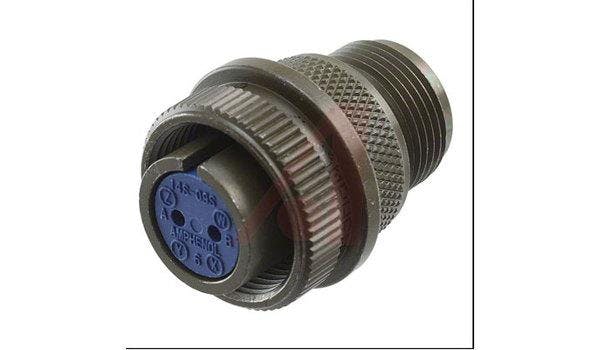

97 Series Solder Type Circular Mating Connector, Plug, -55 to +125 °CMedium to heavy weight cylindrical Durable, field-proven design Environmental resistant Single key?keyway polarization Threaded coupling, hard dielectric inserts Non-rotating contacts Intermateable and intermountable with existing Alternate insert positioning High temperature and potting constructions Special plating finishes including black and green zinc alloy Thermocouple arrangements available
MIL-C-5015 style, provides the interconnection solution for low cost. Shell components are fabricated from high grade aluminum alloy to provide strength and environmental protection. Connector components are fabricated from high grade aluminum alloy, with a conductive cadmium plate finish and an olive drab chromate after-treatment. Some cable clamps are a zinc alloy with an olive drab?green chromate finish. Contacts are silver plated with pre-tinned solder cups Housing Type:Metal | Primary Type:5015 Commercial | Application:Commercial | Shell Size:14S | Mating Type:Threaded | Class:A | Brand/Series:97 Series | Finish, Housing:Olive Drab Cadmium | Angle:Straight | Material, Housing:Aluminum Alloy | Mounting Type:Free Hanging | Agency Approvals:UL/CSA | Strain Relief:Solid | Type:Plug Shell Only |
MIL-C-5015 style, provides the interconnection solution for low cost. Shell components are fabricated from high grade aluminum alloy to provide strength and environmental protection. Connector components are fabricated from high grade aluminum alloy, with a conductive cadmium plate finish and an olive drab chromate after-treatment. Some cable clamps are a zinc alloy with an olive drab?green chromate finish. Contacts are silver plated with pre-tinned solder cups
