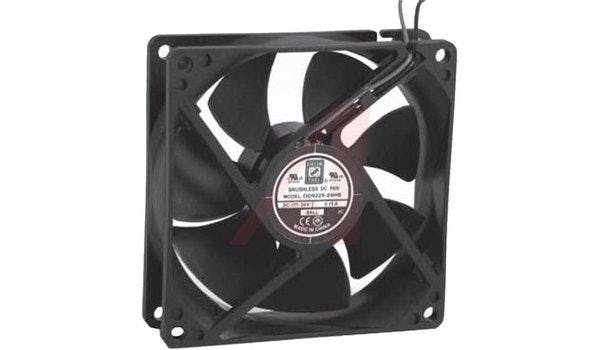

Fan; DC; 24V; 0.18A; 92x92x25mm; Sq; 53CFM; 35dBA; 2900RPM; Leadwires

Orion DC brushless fans are designed for maximum performance with a minimum of noise. Heavy-duty motors are designed for extra long life. Ball bearing models have a 70,000 hour life expectancy.Features:

12" Wire Terminations

Ball Bearing or Sleeve Bearing

Brushless Motors Auto Restart

Impedance and Polarity Protected

Impeller and Frame — Glass Fiber Reinforced Thermoplastic UL94V-0

UL, cÜL, TÜV and VDE Standards

Direction:Exhaust over Struts | Temperature, Operating, Minimum:-20 | Brand/Series:OD9225 Series | Material:Plastic | Air Flow:53 | Current, Rating:0.18 | Fan Type:DC | Noise Level:35 | Bearing Type:2 Ball | Speed:2900 | Temperature, Operating, Maximum:80 | Termination:Leadwires | Voltage, Rating:24 | Dimensions:3.6 x 3.6 x 1 (92 x 92 x 25) | Rotation:CCW | Configuration:Square | Static Pressure:0.24 | Size:3.6 x 1 (92 x 25) | Type:Square | Size, Fan:3.6 x 1 (92 x 25) | Dimensions, mm:92 x 92 x 25 | Dimensions, Inches:3.6 x 3.6 x 1 | Primary Type:Fans |
