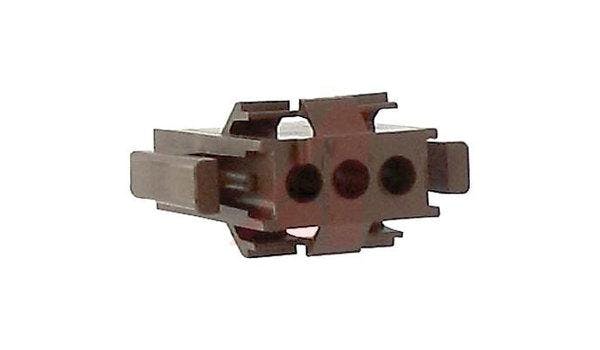

Connector, Soft Shell; 250 VAC; 9 A (Max.); 0.165 in.; Nylon; Brick Red; 3

Soft Shell Connector, 250 VAC, 9 A, Nylon Housing, 3 Circuits The housings are brick red in color (UL 94V-0 rated) and have 0.165" contact-to-contact spacing. Plugs and caps fit the same mounting hole. Contacts accept 26-18 AWG wire with insulation diameters from 0.025"-0.115". UL recognized File E28476 and CSA certified LR7189 for 250 V and 105°C operation. Nylon, 94 V-0 rated, brick red.

Housings Positively Lock to Help Prevent Accidental Disengagement

Plug and Cap Design Include Molded-In Polarizing Feature for Proper Mating

Egg Crate Design of Plug-Half Fully Encloses Socket Contacts Reducing Shock Hazard

Number of Contacts:3 | Current, Rating:9 A (Max.) | Material, Housing:Nylon | Number of Circuits:3 | Angle:Straight | Color:Brick Red | Length, Overall:1.06 | Mounting Type:Panel | Pin Spacing:0.165 | Voltage, Rating:250 | Standards:RoHS Compliant | Primary Type:Miniature Rectangular | Centerline, Matrix:0.165 | Flammability Rating:UL94V-0 | Type:Panel Plug | Number of Rows:1 | Agency Approvals:CSA, UL | Connector Line:Mini Rectangular | Housing Type:Receptacle (Cap) | Brand/Series:MR II |
