EPROM; 1 MBIT UV EPROM; 5V; 150; FDIP32W; 2 V (MIN.); -0.3 V (MAX.); 0; +70

1 Mbit UV and OTP EPROM, 5 V Supply Voltage, 11.5 V (Min.) Program Voltage

Access time is 35 ns

Low power consumption

Programming time is 100 ?s?word

Electronic signature

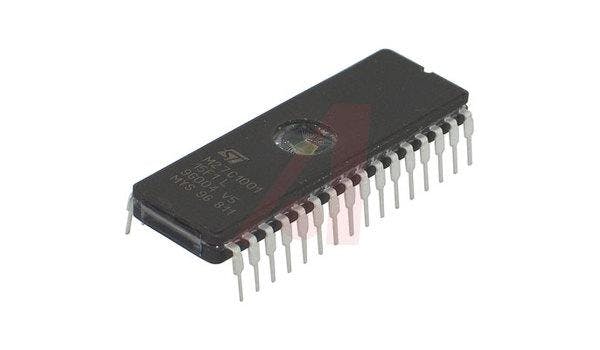

EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). Ideally suited for microprocessor systems requiring large programs and is organized as 131,072 words of 8 bits. The FDIP32W (window ceramic frit-seal package) and the LCCC32W (leadless chip carrier package) have a transparent lids which allow the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be written to the device by following the programming procedure.

Temperature, Operating, Minimum:0 | Time, Rise:?20 | Voltage, Output, High:4.3 V (Read) | Current, Input, Leakage:±10 ?A (Read) | Current, Operating:30 mA (Read) | Density:1M | Temperature, Operating:0 to +70 | Time, Programmable:100 | Time, Access:120 | Capacitance, Input:6 | Interface:Parallel Bus | Time, Fall:?20 | Voltage, Output, Low:0.4 V (Read) | Voltage, Input, High:6 V (Read) | Capacitance, Output:12 | Voltage, Input, Low Level:-0.3 V (Max.) | Current, Supply:30 mA | Voltage, Supply:5 | Current, Output, Leakage:±10 ?A (Read) | Memory Type:EPROM | Voltage, Input, High Level:2 V (Min.) | Voltage, Input, Low:0.8 V (Read) | Organization:128K×8 | Package Type:FDIP-32W | Temperature, Operating, Maximum:70 | Voltage, Programmable:11.5 V (Min.) |
