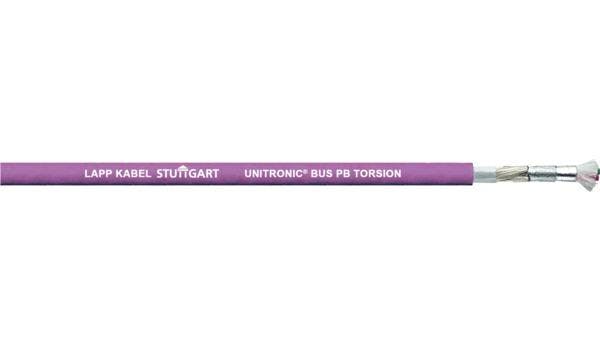

UNITRONIC BUS PB TORSION is designed for automation networks requiring fast and reliable data exchange between controllers and field devices.
Recommended Applications: Torsion applications like robots; PROFIBUS bus systems DP, FMS, and FIP
Application Advantages:
- For torsional stress ± 180°/meter
- Halogen-free and flame-retardant outer jacket
- Communication rate up to 12 Mbit/s
- Minimum Bend Radius
- for stationary use: 4 x cable diameter
- for continuous flexing: 15 x cable diameter
- Temperature Range -25 to +75°C
- Nominal Voltage 300V (not for power applications)
- Characteristic Impedance 150 ? ± 15 ?
- Nominal Capacitance 9 pF/ft
- Color Code Red & green
- Approvals UL: CMX Canada: c(UL) CMX
