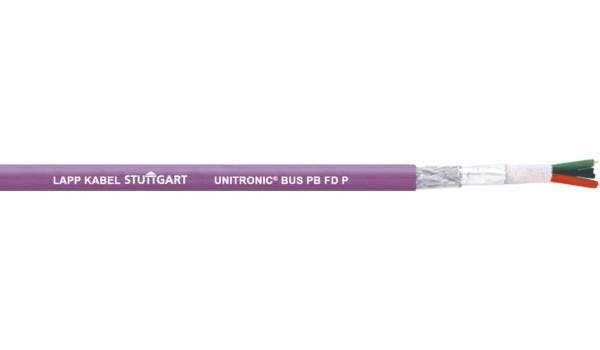

UNITRONIC BUS PROFIBUS FD cables are designed for automation networks requiring fast and reliable data exchange between controllers and field devices.
Recommended Applications: Highly flexible applications like cable tracks & moving machine parts; PROFIBUS bus systems DP, FMS, and FIP
Application Advantages:
- Oil-resistant and flame-retardant outer jacket
- Fast connect style for quick installation
- Communication rate up to 12 Mbit/s
- Minimum Bend Radius
- for continuous flexing: 9 x cable diameter
- Fast connect: 15 x cable diameter
- Temperature Range
- for stationary use: -40 to +80°C
- for flexible use: -30 to +70°C
- Characteristic Impedance 150 ? ± 15 ?
- Nominal Capacitance 9 pF/ft
- Color Code Red & green
- Approvals UL: CMX (2170822, 2170322) Canada: c(UL) CMX (2170822, 2170322)
- Additional: Torsion rated for Wind Market (± 15°/m) (2170222, 2170822)
