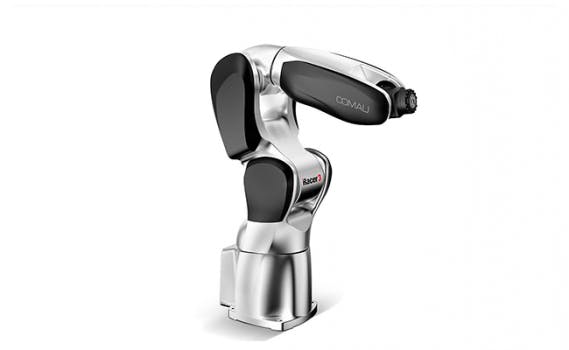

Racer3 Flexible 6-Axis Robot

Racer3 is a high-speed, 6-axis articulated robot featuring a payload of 3 kg and a reach of 630 mm. With a streamlined design and brushed metal exterior, the robot moves with absolute precision and repeatability. Built from high-strength aluminum, the robot weighs just 66 lb. and can be easily mounted on benches, walls, ceilings or on inclined supports.



Created for general industry sectors, including food & beverage, electronics, plastics, metalworking, and more, Racer3 has a wide and very flexible work area. Its rigid construction ensures higher precision and repeatability, whereas the hollow body construction optimizes the fluid transition of cables. Racer3 can also be easily transported and installed almost anywhere, guaranteeing maximum deployability.

 Axes 6 Max. Wrist Payload 7 lb. (3 kg) Add. Load on Forearm 4 lb. (2 kg) Max. Horizontal Reach 25 in. (630 mm) Torque on Axis 4 7.36 Nm Torque on Axis 5 Torque on Axis 6 4.41 Nm Stroke on Axis 1 +/- 170-deg. (430-deg./s) Stroke on Axis 2 -95/+135-deg. (450-deg./s) Stroke on Axis 3 -155/+90-deg. (500-deg./s) Stroke on Axis 4 +/- 200-deg. (600-deg./s) Stroke on Axis 5 +/- 125-deg. (600-deg./s) Stroke on Axis 6 +/- 2,700-deg. (900-deg. /s) Repeatability 0.0008 in. (0.02 mm) Tool Coupling Flange ISO 9409 –1 – A25 Protection IP54 Mounting Floor/Ceiling/Sloping/Wall Operating Areas A 3.5 ft (1 m) Operating Areas B 25 in. (630 mm) Operating Areas C 1 in. (37 mm) Operating Areas D 21 in. (530 mm) Operating Areas E 5 in. (136 mm)



Applications:

• Plastics
• Metalworking
• Food & Beverage
• Electronics
• More...
