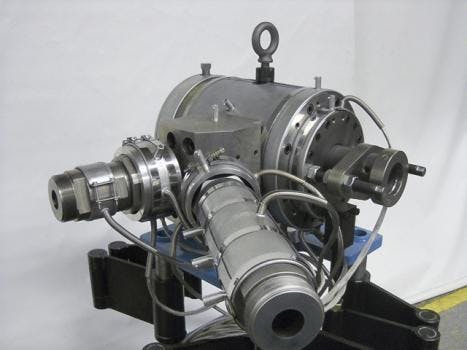

Series 725 Self-Aligning Co-Extrusion Crosshead for PVC Over PVC

Sept. 10, 2015
Guill Tool's Series 725 converts the production line from a Tandem line with two heads a distance apart into a co-extrusion line with a single head applying both layers of PVC in a single operation.

Series 725 converts the production line from a Tandem line with two heads a distance apart into a co-extrusion line with a single head applying both layers of PVC in a single operation.

This method provides savings and also offers a shorter changeover time, less scrap, and improved quality.

The Guill Seal Right system includes a self-aligning tapered deflector and body design and the crosshead has a multi-port spiral flow.

Features:

  • Multiport spiral flow
  • Easy disassembly and restart
  • Positive seals for leak elimination
  • Adaptable to all extruder brands,
  • Max. thru-core of 1.75 in. and max. die ID of 2 in.
  • Guill Seal Right system

Materials of Construction:

Fluoropolymer Applications:

  • Inconel
  • Hastelloy
  • Monel

Plastics Applications:

  • Stainless Steel
  • Tool Steel
  • Custom Design
  • Stripes
  • Multilayer
  • Multi-lumen
  • Dual Output
  • Single Extrusion
  • Solid Core
  • Hollow Core
  • Chemical Hose & Tube
  • Consumer Products
  • Cosmetics
  • Energy
  • Fiber Optic
  • Food Processing
  • Industrial Hose & Tube
  • Industrial Pipe
  • Irrigation
  • Medical
  • Pharmaceutical
  • Under Sea Cable
  • Under Sea Pipe
  • and more...

Model Core Diameter Max Die
725 2.5 in. (63.5 mm) 3 in. (76.2 mm)


Guill Tool & Engineering
West Warwick, RI
(401) 828-7600
[email protected]
guill.com
