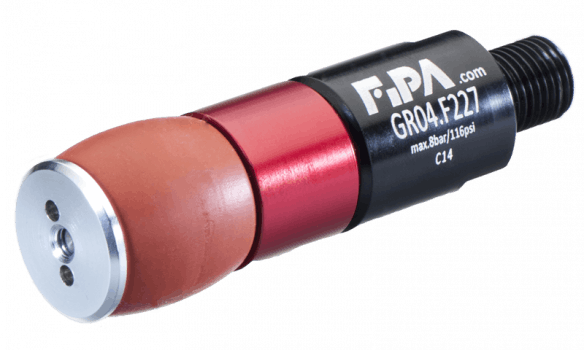

These single-acting, pneumatically operated expansion grippers, with a diameter ranging from of 8-85 mm, gently grip the inner contours of workpieces without leaving any marks, providing an effective alternative to suction cups and sprue grippers for parts with holes or recesses.
The color-coded grippers made of high-strength, anodized aluminum can also be adjusted to individual workpieces via feed pressure.
- Color coded
- FDA approved for direct contact with food
- Made of high-strength, anodized aluminum and service-friendly EPDM or silicone bellows
- Withstands temperatures up to 266°F (EPDM) and 392°F (silicone)
- 11 grippers in the series
- Accommodate a variety of workpieces with inner diameters ranging from 8–85mm and weigh between 0.88 and 37.047oz
- Available with a wide range of matching fittings, screw connections, and other accessories
- Several sizes of mounting brackets for variable angle installation
- Four different extension tubes with compressed air connections.
