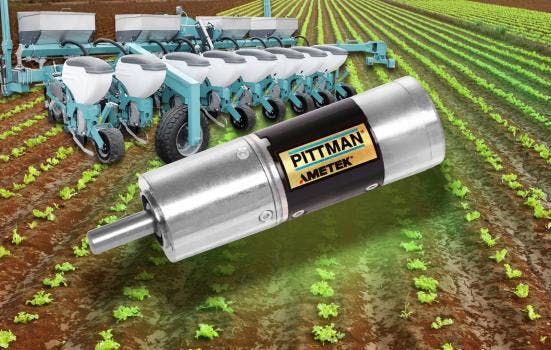

When placed in agricultural planting equipment, DC030C and DC054B series gear motors with encoders consistently dispense seed and insecticide to improve crop yield.
DC030C series is a 30 mm diameter motor available in three motor lengths with output power ratings of 8 to 30 w. Gear reduction for the DC030C motor includes the G35 spur gearbox with load torque ratings of 0.71 to 1.24 Nm and the G30 planetary gearbox with load torque ratings of 2.47 to 8.83 Nm.
DC054B series is a 54 mm diameter motor available in seven motor lengths with output power ratings of 25 to 108 w. Gear reduction for the DC054B motor includes the G51 spur gearbox with load torque ratings of 1.24 to 3.53 Nm and the PLG52 planetary gearbox with load torque ratings of 1.2 to 24 Nm.
DC030C
- 0 mm diameter motor
- Three motor lengths
- Output power ratings of 8 to 30 w
- 35 spur gearbox load torque ratings: 0.71 to 1.24 Nm
- G30 planetary gearbox load torque ratings: 2.47 to 8.83 Nm
DC054B
- 54 mm diameter motor
- Seven motor lengths
- Output power ratings of 25 to 108 w
- G51 spur gearbox load torque ratings: 1.24 to 3.53 Nm
- PLG52 planetary gearbox load torque ratings: 1.2 to 24 Nm
