APCO-X MAG Air Treatment System

April 15, 2022

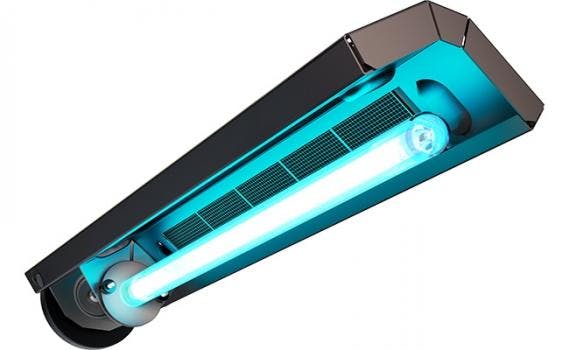

The Fresh-Aire UV APCO-X MAG features a three-year UVC (254 nm) quartz lamp and UL-2998 validation.

The APCO-X MAG is a new generation in the APCO product line of combination ultraviolet (UV) technology and activated EverCarbon media catalyst air treatment for HVAC systems. It offers a three-year UVC quartz lamp for biological disinfection, zero-ozone UL-validation, and a design for tight HVAC system spaces. The APCO-X family of products offers longer UV lamp lifecycles for cutting-edge, airstream, evaporator coil, drain pan, and interior air handling unit disinfection.



It features APCO-X’s V-Twin Cell Matrix, incorporating lifetime ceramic cells infused with EverCarbon media for enhanced IAQ performance and a 65% increase in volatile organic compound adsorption surface area compared to the original system. The substrate’s catalyst agent treatment is antimicrobial-coated.



For installation flexibility near the evaporator coil, plenum or duct, the APCO-X MAG magnetic mounting bracket has a compact design. The unit’s magnet mount attaches to metal cabinets, and its anti-vibration coating prevents wandering out of position. The 90-deg. electrical connector offers more clearance versus straight plugs. The power supply also accommodates limited spaces when located remotely from the lamp assembly via a power cable.



The lamps are available in 15 in. (38.1 cm) and 11 in. (27.9 cm) models. Other features of the APCO-X MAG include a newly designed ballast and UVC lamp configuration for tight spaces, voltage options of 24 to 32V low voltage or 110 to 277V line voltage with automatic voltage selection, and consumer-oriented packaging.

  • Exclusive V-Twin EverCarbon Matrix with nanotech antimicrobial coating
  • Advanced 3-year UVC 254 nm quartz lamp
  • Direct coil exposure
  • UL Validated to produce no harmful ozone
  • Continuously treats the whole-system
  • Mounting Magnet with anti-vibration coating
